Yale
Yale Digital Door Spy DDV 5800, 4.3" Display, Silver, incl. Motion Detection, Doorbell & Night Visio
Yale Digital Door Spy DDV 5800, 4.3" Display, Silver, incl. Motion Detection, Doorbell & Night Visio
Couldn't load pickup availability

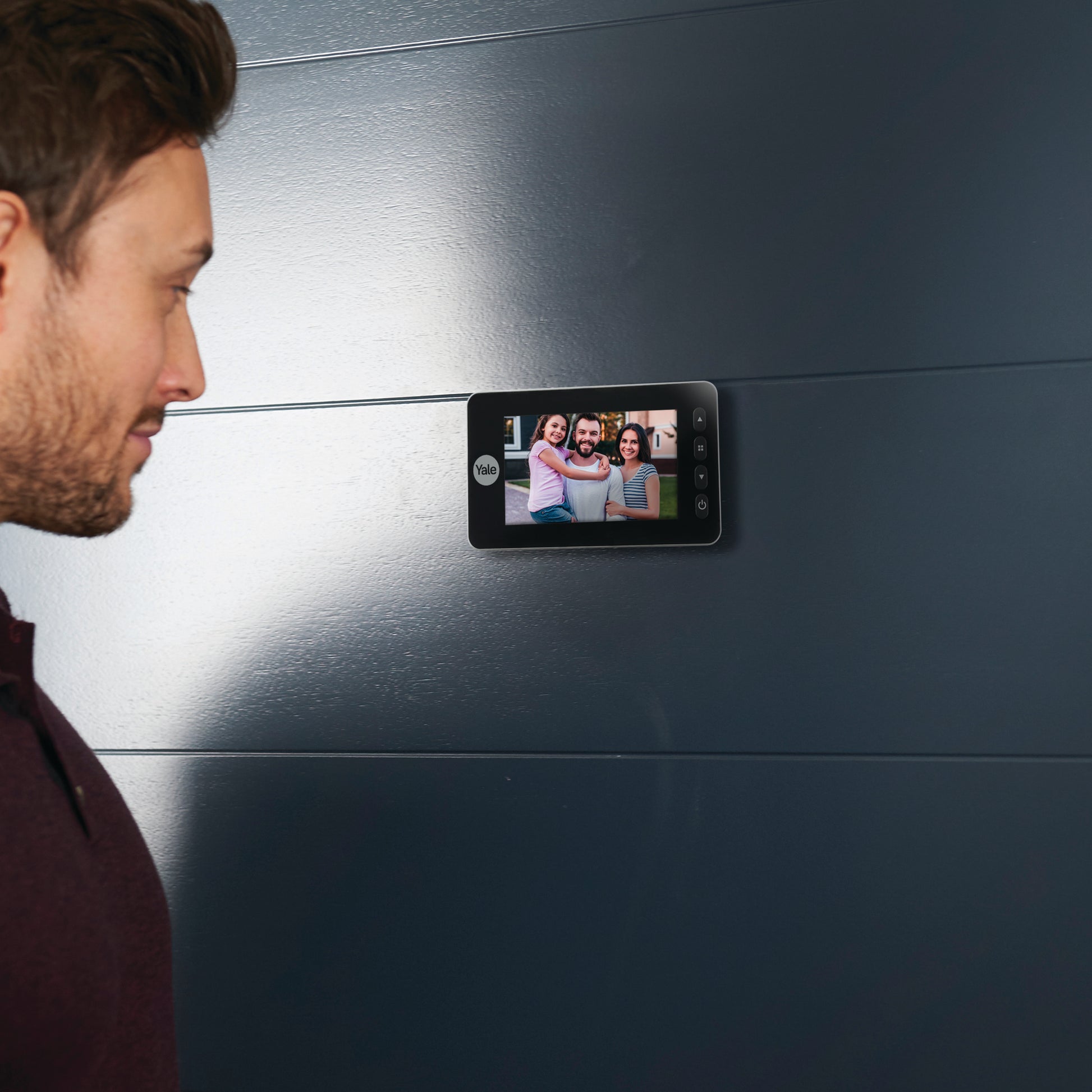

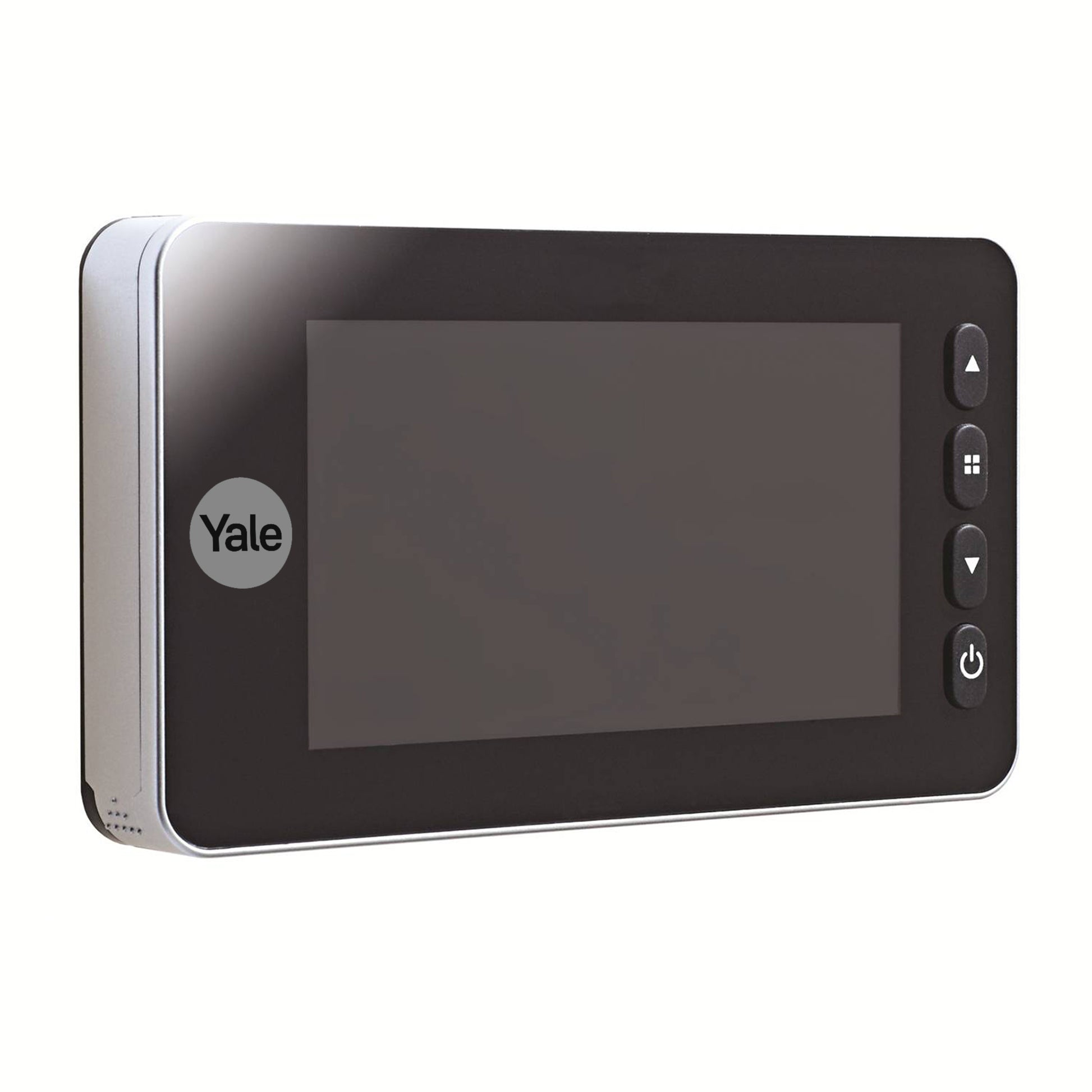

Modernize your door with the Yale DDV 5800 Digital Door Spy. Boasting a large 4.3" LCD screen, motion detection, night vision, and an integrated doorbell, it replaces the traditional peephole with a smarter, safer and more convenient viewing solution. With automatic image capturing and a 110° wide-angle view, you never miss a visitor—day or night.
Key Features
-

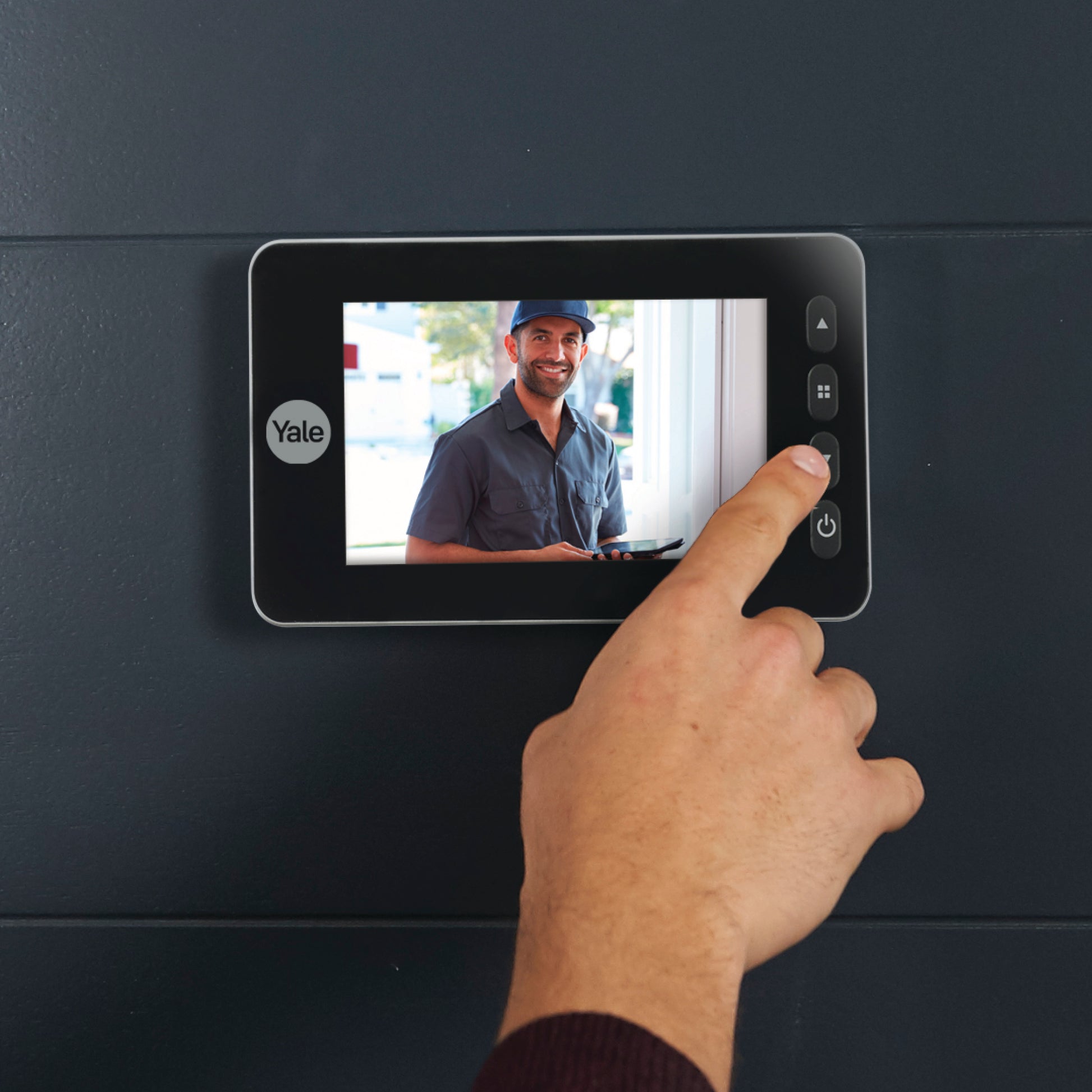

Live View with Capture — Press to view your doorway in real time; motion triggers automatic image or video capture (with date/time stamp).
-
Motion Detection — The built-in sensor detects movement and activates recording or snapshot.
-
Night Vision (Infrared) — See clearly in darkness with infrared illumination.
-
Integrated Doorbell — Visitors press the exterior button, triggering the display inside (80 dB chime).
-

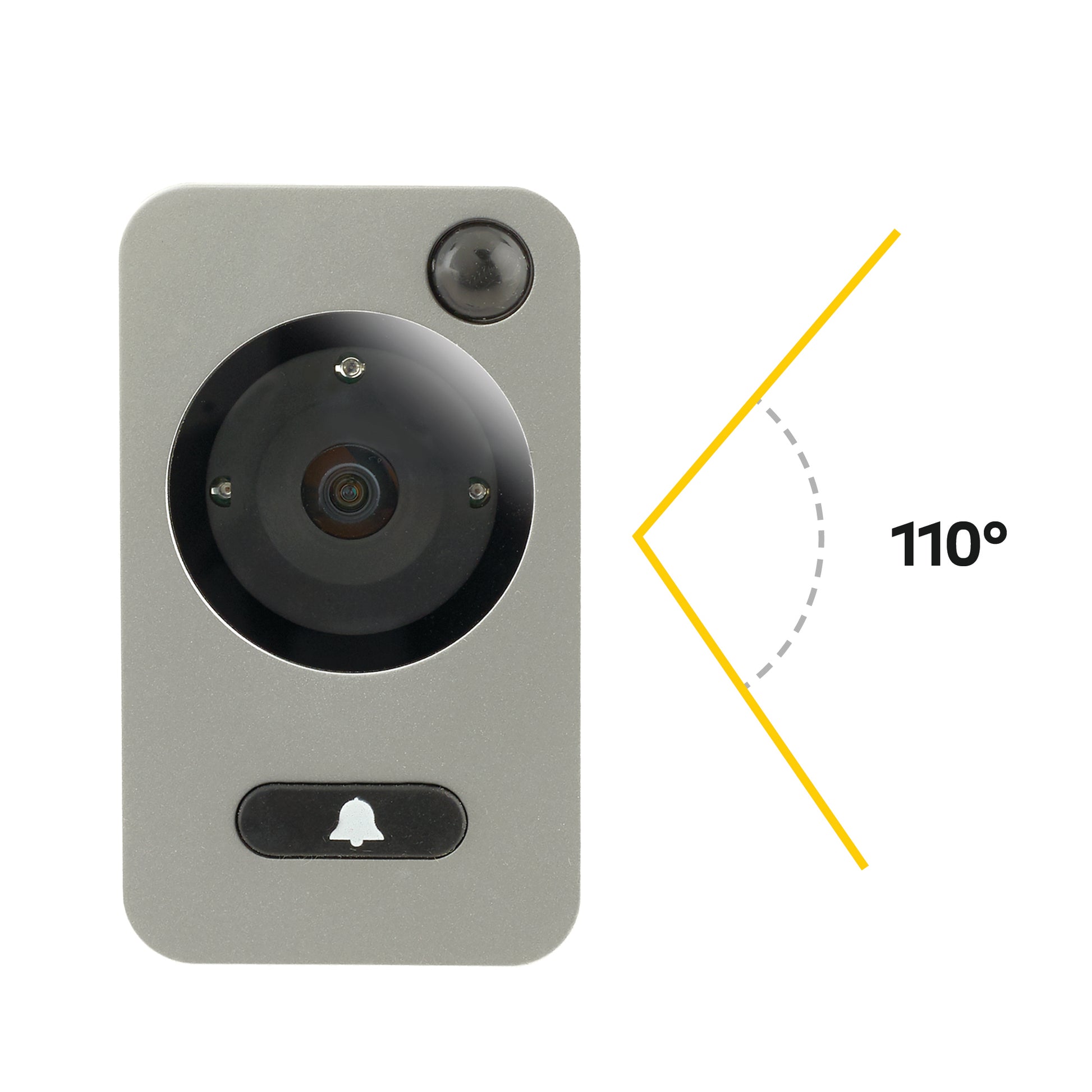

Wide Viewing Angle — 110° field of view to cover more of the outside scene.
-
Easy Retrofit Installation — Fits into the standard 14 mm peephole hole, on doors with thickness between 38 mm and 110 mm.
-
4 GB MicroSD Included — Recordings and images are stored on the supplied memory card.
-
Power via 4 × AAA Batteries — No wiring required.
Technical Specifications
| Specification | Detail |
|---|---|
| Display | 4.3" LCD |
| Camera / Sensor | 0.3 MP (approx.), 110° viewing angle |
| Motion Detection | Yes, with image/video capture |
| Night Vision | Infrared mode |
| Doorbell | Integrated, approx. 80 dB |
| Door Thickness Supported | 38 mm to 110 mm |
| Hole Diameter (for installation) | Standard 14 mm |
| Power Supply | 4 × AAA batteries |
| Memory | Includes 4 GB MicroSD card |

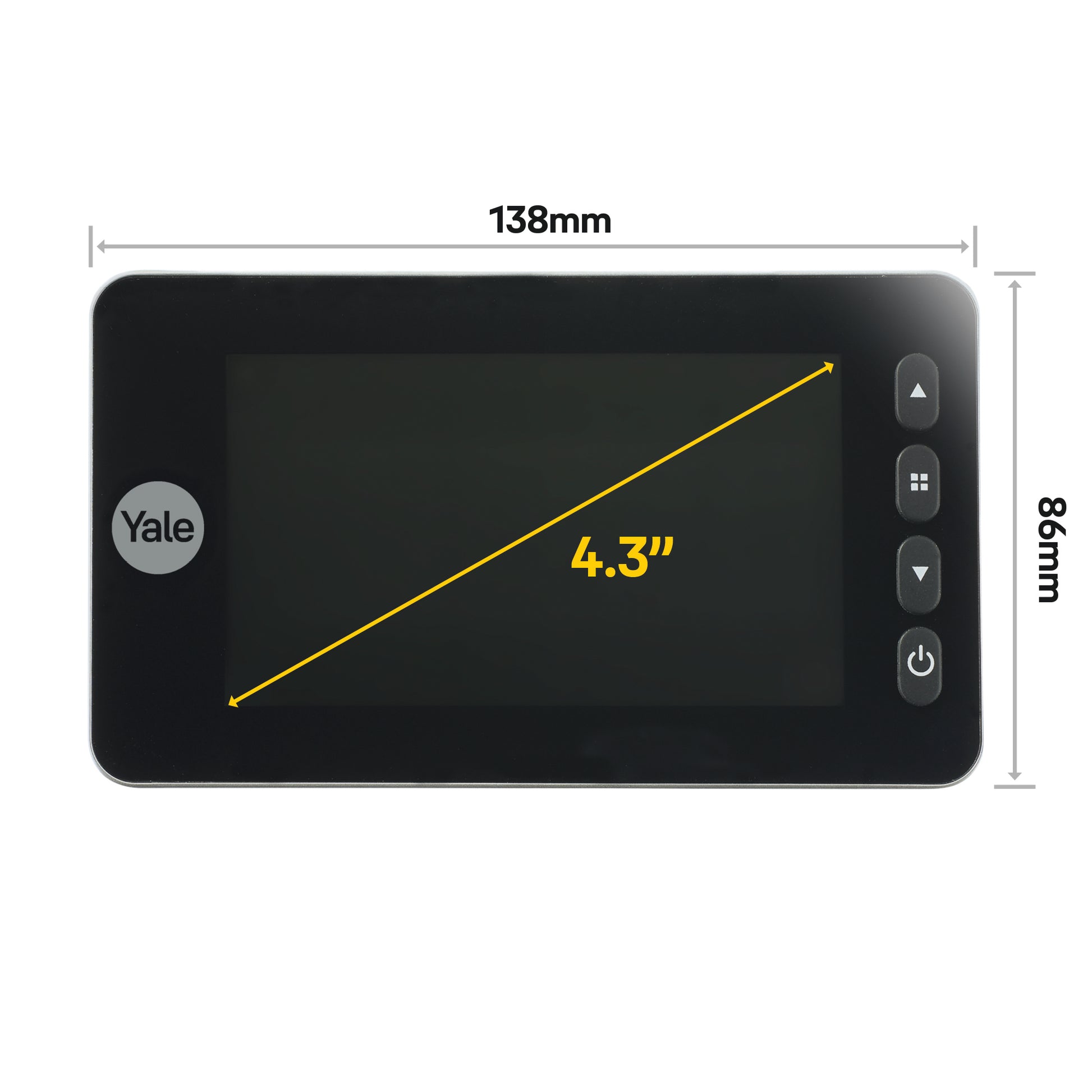

| Dimensions | ~ 140 × 81 × 20 mm |
| Weight | ~ 341 g |
| Colours | Silver (also available in gold variant) |
| Installation | Replaces existing mechanical peephole |
| Additional Notes | Automatic saving feature, time/date stamp on captures |
