MCO Home Fan Coil Thermostat 4 pipe

Name: MCO Home Fan Coil Thermostat 4 pipe
Brand: MCO
Price: 119.79 EUR
Availability: InStock

€119,79

Sale Sold out

Taxes included. Shipping calculated at checkout.

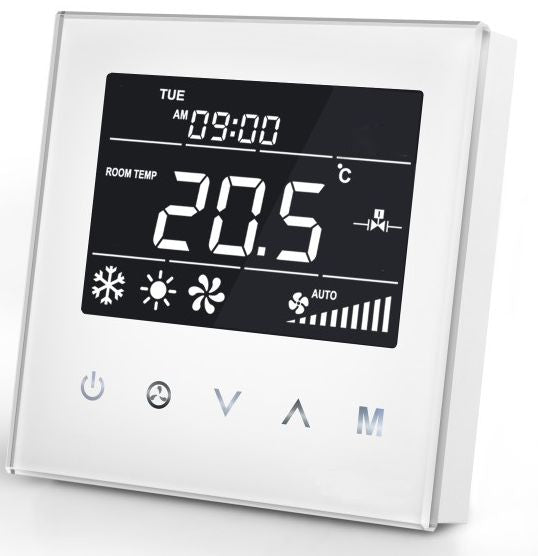

MCOThe MCO Home Fan Coil Thermostat (MH8-FC4) in white is a cutting-edge Z-Wave enabled solution designed for seamless and smart indoor climate management. Featuring a sleek and modern aesthetic, this wall-mounted thermostat integrates a sophisticated climate control system with high-end home automation. The device boasts an elegant tempered glass panel with capacitive touch buttons, making it a premium addition to any living space. Specifically engineered for use with 4-pipe Fan Coil Units (FCU) in central air conditioning systems, it ensures precise temperature regulation and optimal comfort. As a Z-Wave Plus certified device, it offers high reliability and can be effortlessly included into any existing Z-Wave network, working seamlessly with other certified devices to enhance your overall smart home experience.

Functionalities

This smart fan coil thermostat offers comprehensive climate control and integration capabilities:

Intelligent Fan Coil Control: It provides intelligent ON/OFF control for the fan and electric (ball) valves of a 4-pipe system, managing both heating and cooling circuits.
Multi-Mode Operation: Users can select between three primary operational modes: Cooling, Heating, and Ventilation, offering flexible climate management year-round.
Automatic Fan Speed Adjustment: The thermostat can read the current room temperature and automatically adjust the $3-speed$ fan (Low, Medium, High) based on the calculated temperature difference from the setpoint, promoting energy efficiency and maintaining ideal conditions. An Auto speed mode is also available.
Remote Smart Control: Via a compatible Z-Wave gateway, users can remotely monitor and adjust the temperature setting, operating mode, and fan speed from anywhere, enabling advanced automation scenarios.
Precise Temperature Management: Includes a precise temperature calibration function to ensure high accuracy in sensing and regulating the room temperature.
Non-Volatile Memory: The device features non-volatile memory, ensuring that the working state and all user settings are saved even in the event of a power failure.
Display Features: A clear display shows essential control information, including room temperature, set temperature, local time, and current operating mode.

Technical Specifications

Parameter	Specification
Model	MH8-FC4 (4-Pipe Version)
Power Supply	AC $85$ V $\sim$ $260$ V, $50/60$ HZ
Resistive Load	$\leq 3$ A
Self Consumption	$< 1$ W
Wireless Technology	Z-Wave Plus (Series $500$ )
Z-Wave Frequency	$868.42$ MHz (EU frequency, varies by region)
Temperature Sensor	NTC $15$ K
Temperature Setting Range	$5$ $\sim$ $35$ $°C$ (Adjustable)
Display Accuracy	$0.1$ $°C$
Working Environment	$0$ $\sim$ $55$ $°C$ ; $< 95%$ $RH$ (Non-condensation)

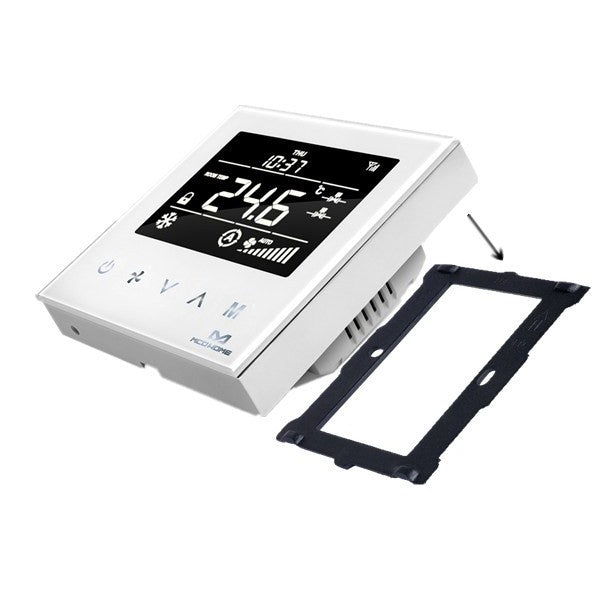

Installation	Wall-mounted, flush mounted in an $86 \times 86$ mm junction box (Hole Pitch: $60 - 65$ mm)
Dimensions	$86 \times 86 \times 42$ mm (Approximate)
Housing Material	Tempered glass panel, PC alloy enclosure
