MCO

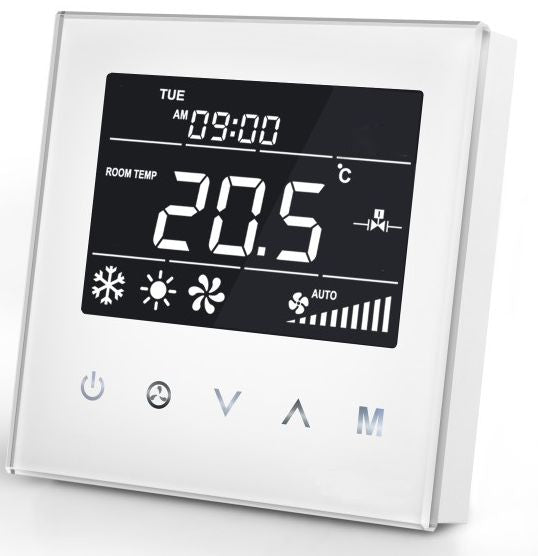

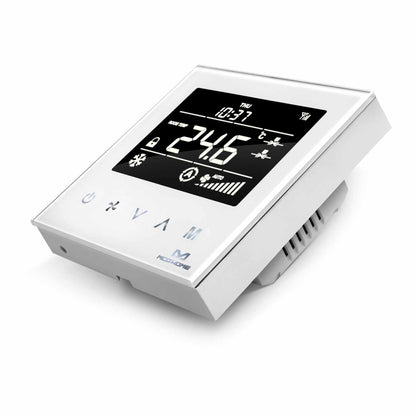

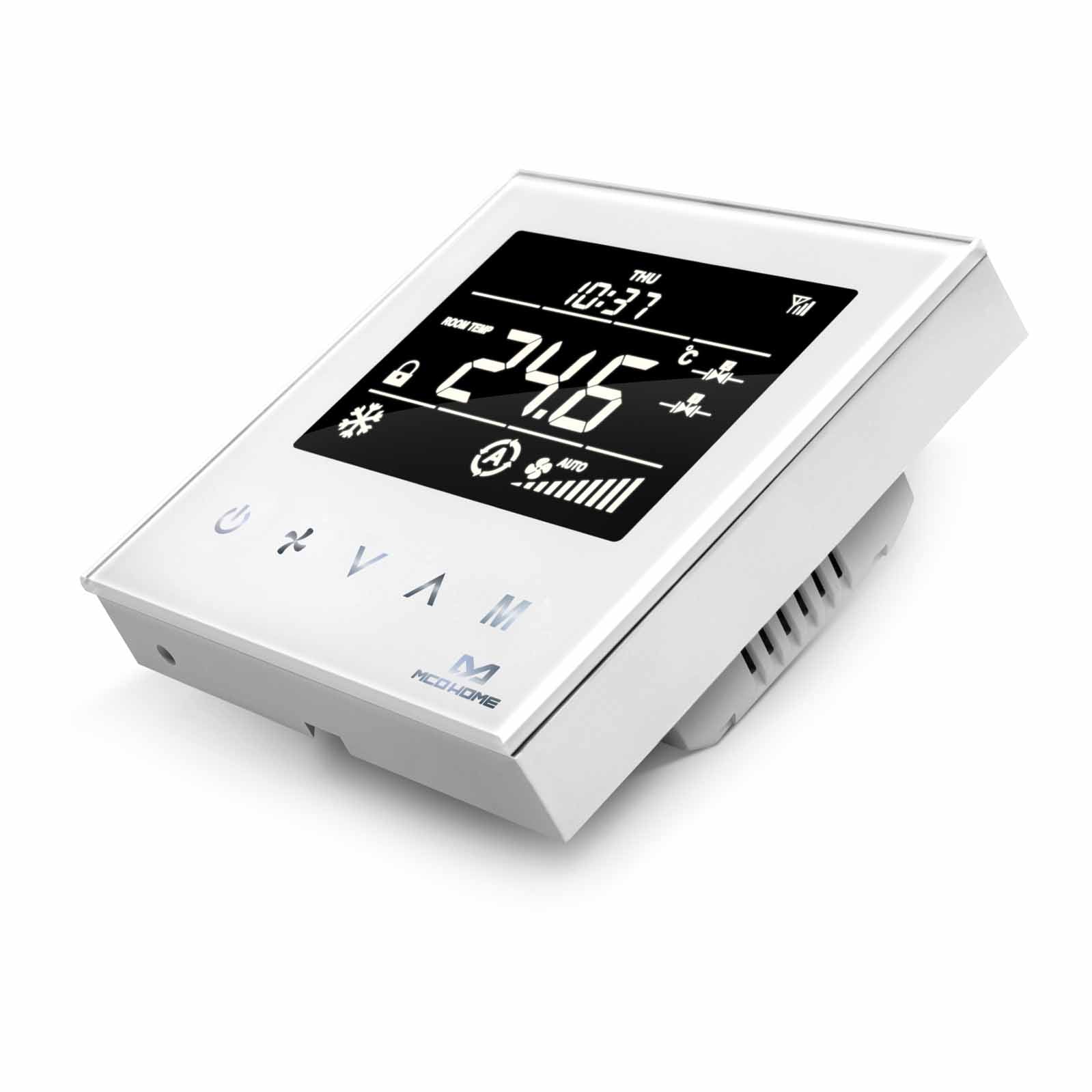

MCO Home Fan Coil Thermostat 2 pipe

Name: MCO Home Fan Coil Thermostat 2 pipe
Brand: MCO
Price: 119.50 EUR
Availability: InStock

€119,50

Sale Sold out

Taxes included. Shipping calculated at checkout.

The MCO Home Fan Coil Thermostat (MH8-FC) in white delivers sophisticated, smart temperature control specifically engineered for 2-pipe Fan Coil Units (FCU) within central air conditioning systems. This Z-Wave enabled device is the ideal solution for modern residential and commercial settings aiming for seamless climate automation. Its design is characterized by a sleek tempered glass panel and capacitive touch buttons, providing a clean, contemporary look and intuitive local operation. The MH8-FC provides high reliability and practicality, and as a Z-Wave Plus product, it ensures robust communication and interoperability within any certified Z-Wave smart home network.

Functionalities

The MH8-FC thermostat offers a full suite of features to ensure customized and energy-efficient indoor climate management:

Dedicated 2-Pipe System Control: Designed for the centralized control of a 2-pipe fan coil system, it intelligently manages a single electric (ball) valve to switch between heating and cooling delivery, as determined by the system's current pipe temperature (often set centrally by the building management).
Versatile Operating Modes: Users can easily cycle through Cooling, Heating, and Ventilation modes to maintain comfort in any season.
Intelligent Fan Management: The thermostat provides precise ON/OFF control for the fan and offers $3-speed$ manual settings (Low, Medium, High), plus an Auto mode that automatically adjusts fan speed based on the difference between the actual room temperature and the user-defined setpoint.
Remote and Automated Control: Full Z-Wave integration allows for remote monitoring, scheduling, and control of temperature settings and modes via a connected smart home gateway, facilitating energy-saving automation scenarios.
Accuracy and Memory: It includes a precise temperature calibration function for accurate readings and utilizes Non-volatile Memory, ensuring all configurations and the current working state are preserved after a power interruption.
User Interface: A clear digital display presents all critical information, including the current room temperature, local time, and active settings, all accessible via the capacitive touch interface.

Technical Specifications

Parameter	Specification
Model	MH8-FC (2-Pipe Version)
Power Supply	AC $85$ V $\sim$ $260$ V, $50/60$ HZ
Resistive Load	$\leq 3$ A
Self Consumption	$< 1$ W
Wireless Technology	Z-Wave Plus (Series $500$ )
Z-Wave Frequency	$868.42$ MHz (EU frequency, varies by region)
Temperature Sensor	NTC $15$ K
Temperature Setting Range	$5$ $\sim$ $35$ $°C$ (Adjustable)
Display Accuracy	$0.1$ $°C$
Working Environment	$0$ $\sim$ $55$ $°C$ ; $< 95%$ $RH$ (Non-condensation)

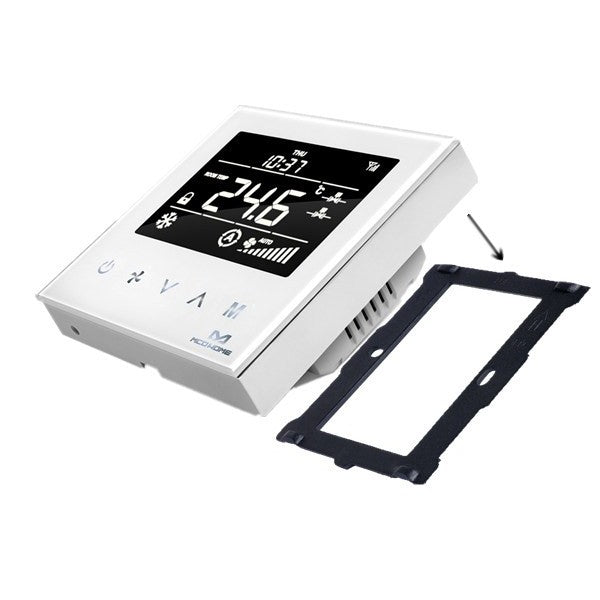

Installation	Wall-mounted, flush mounted in an $86 \times 86$ mm junction box (Hole Pitch: $60 - 65$ mm)
Dimensions	$86 \times 86 \times 42$ mm (Approximate)
Housing Material	Tempered glass panel, PC alloy enclosure
