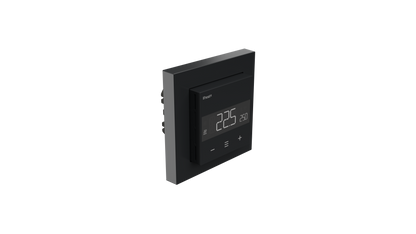

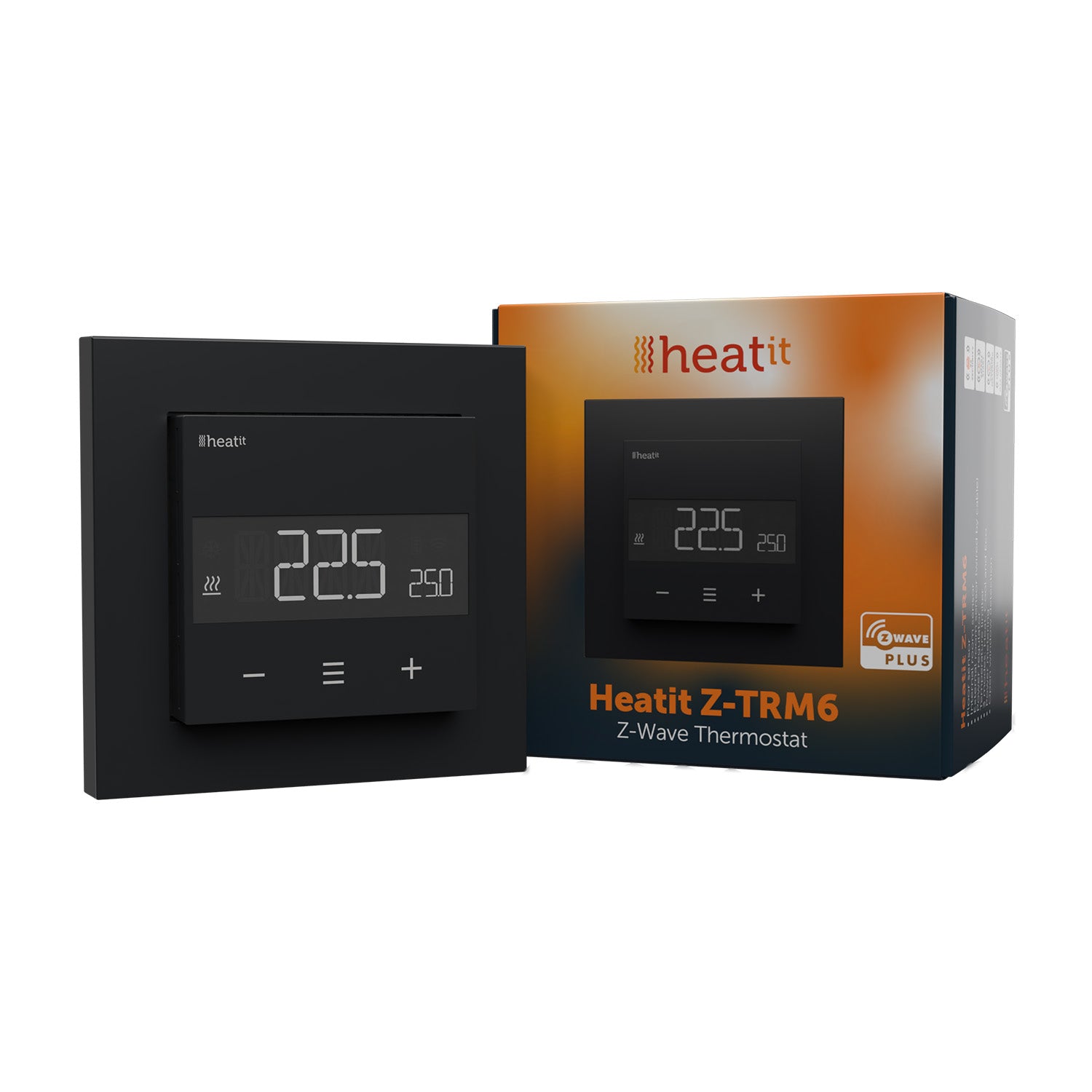

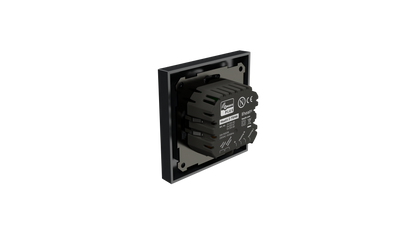

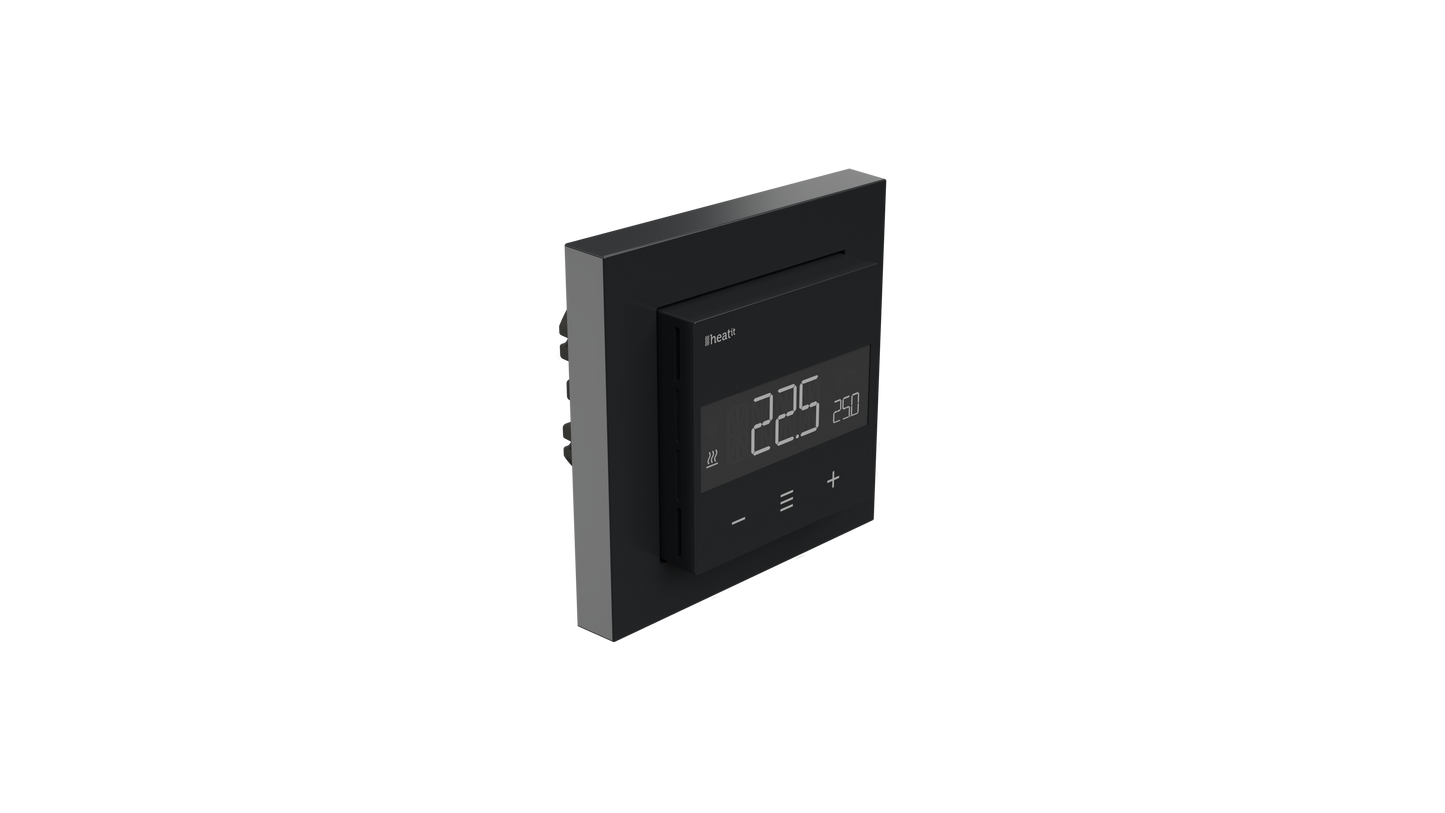

The Heatit Z-TRM6 Thermostat Z-Wave 800 series (Black Matt) is a smart electronic thermostat primarily designed for electrical heating and can also be used for water-based heating control (with a potential-free relay model, if it's the DC version).
Here are the key features and specifications of the Heatit Z-TRM6:
Functionalities:
Primary Function & Compatibility:
-
Heating Control: Designed for electrical heating (like underfloor heating mats or cables) and can control water-based heating systems.
-
Z-Wave Smart Home: Uses the Z-Wave 800 series chip for communication, allowing it to be controlled and monitored via a compatible Z-Wave smart home gateway.
-
Modes: Offers three operating modes: Heat, Cool, and Eco.
Sensors and Measurement:
-
Built-in Sensor: Includes one built-in room temperature sensor.
-
External Sensors: Supports the connection of up to two additional external temperature sensors (e.g., floor sensor and/or external room sensor).
-
Sensor Modes: Multiple sensor modes available (Internal Room, Floor, Internal + Floor, External, External + Floor, or Power Regulator mode).
-
Active Power Metering: Provides real-time information about your power consumption.
Technical Specifications (Standard 230V Model):
-

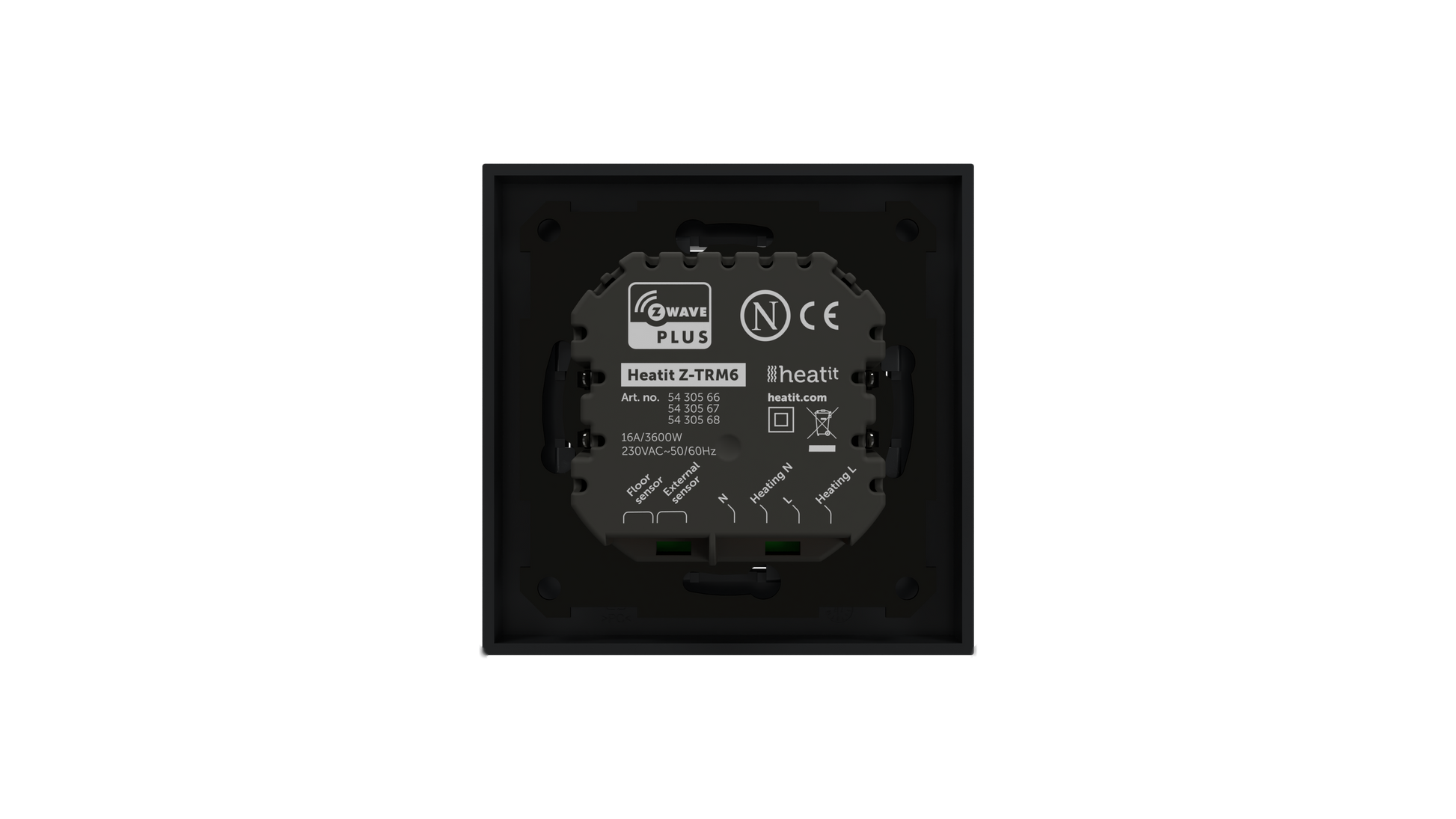

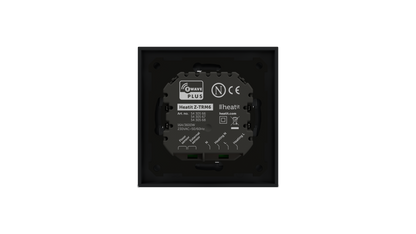

Voltage: 230VAC 50Hz.
-
Max Load: Up to 16A / 3600W (resistive load). A contactor is recommended for loads above 13A.
-
ZeroX™ Technology: Ensures the relay switches at 0V when turning on and off, which significantly extends the lifespan of the thermostat.
-

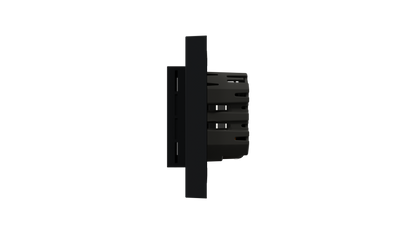

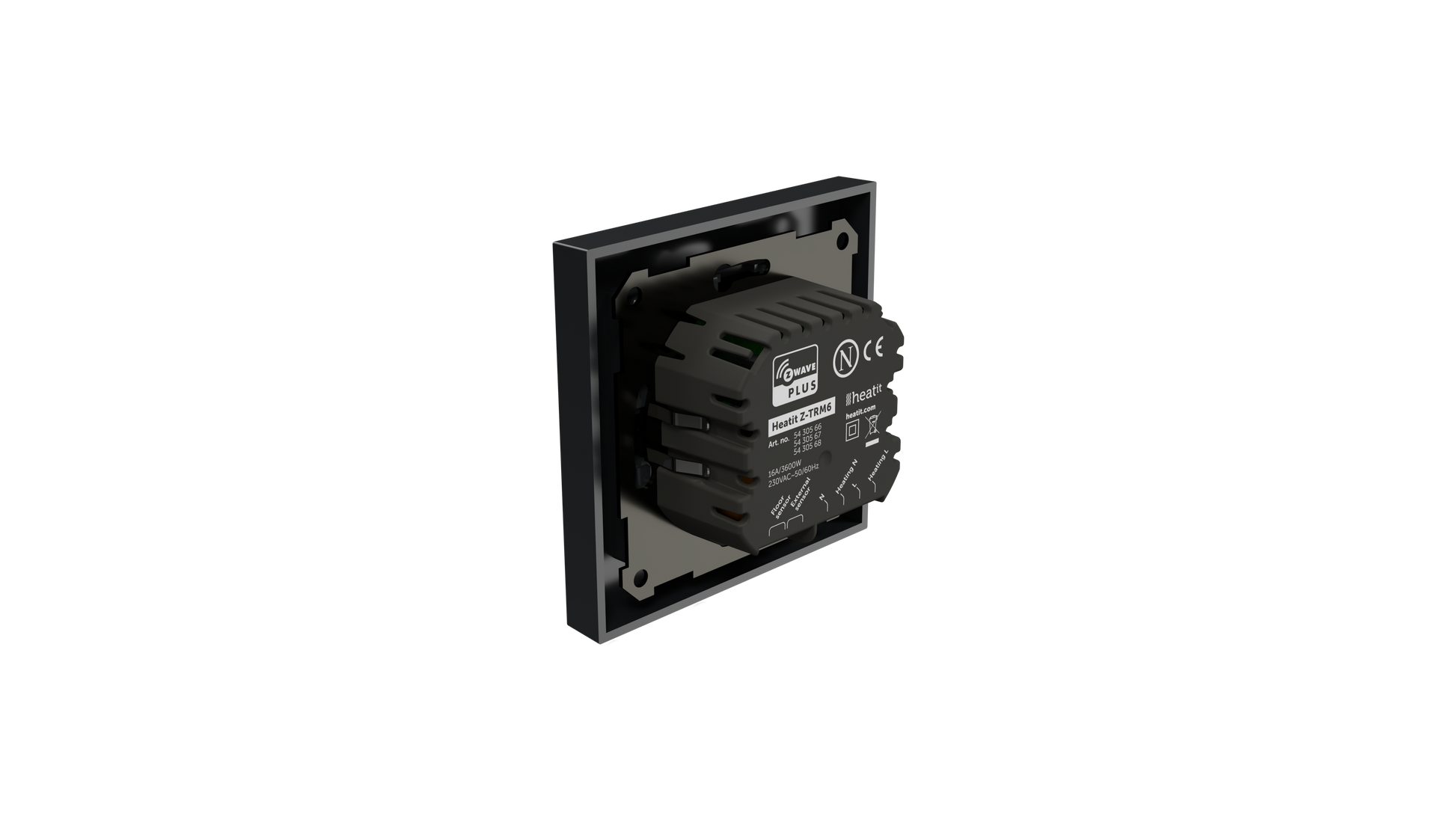

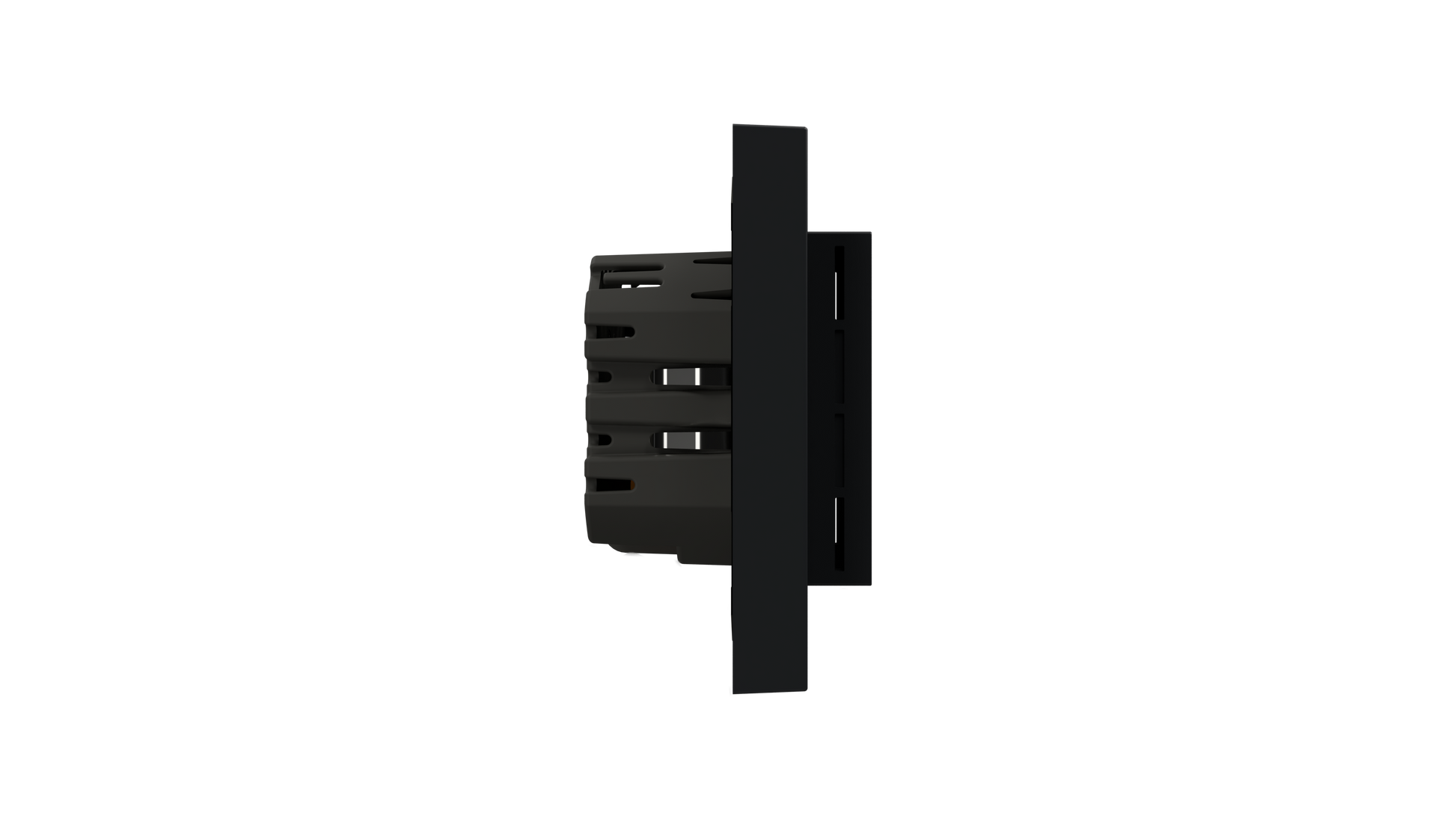

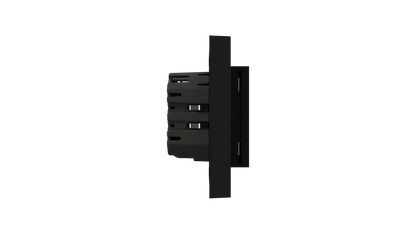

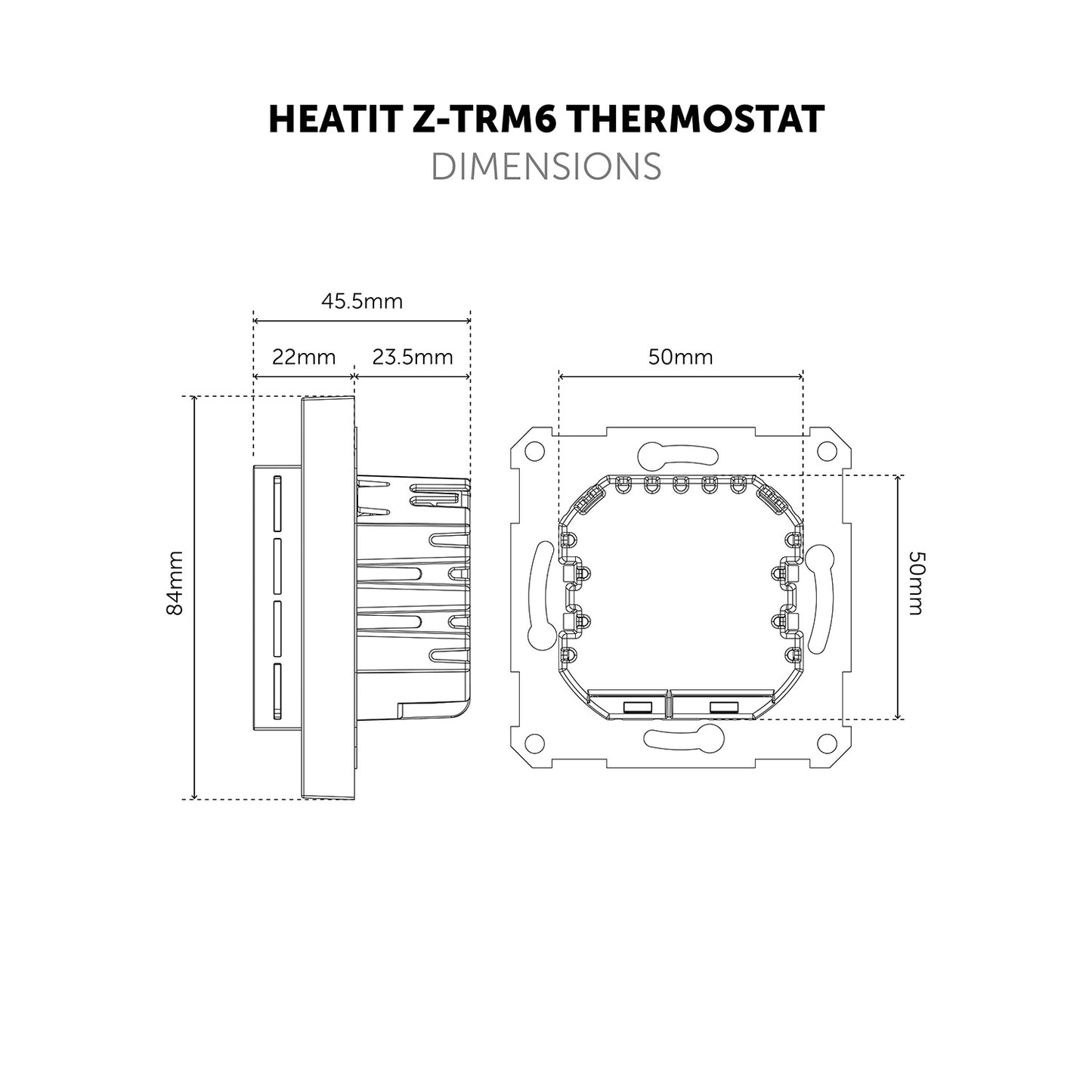

Installation: Fits in standard European junction boxes and is compatible with most System 55 frames. Features a sturdy metal frame.
Advanced Features:
-
Master Thermostat: Can be set up as a master to control up to 10 other thermostats and 10 external relays/wall plugs (via Z-Wave associations).
-
Temperature Control: Supports Hysteresis or Pulse Width Modulation (PWM) for regulation.
-

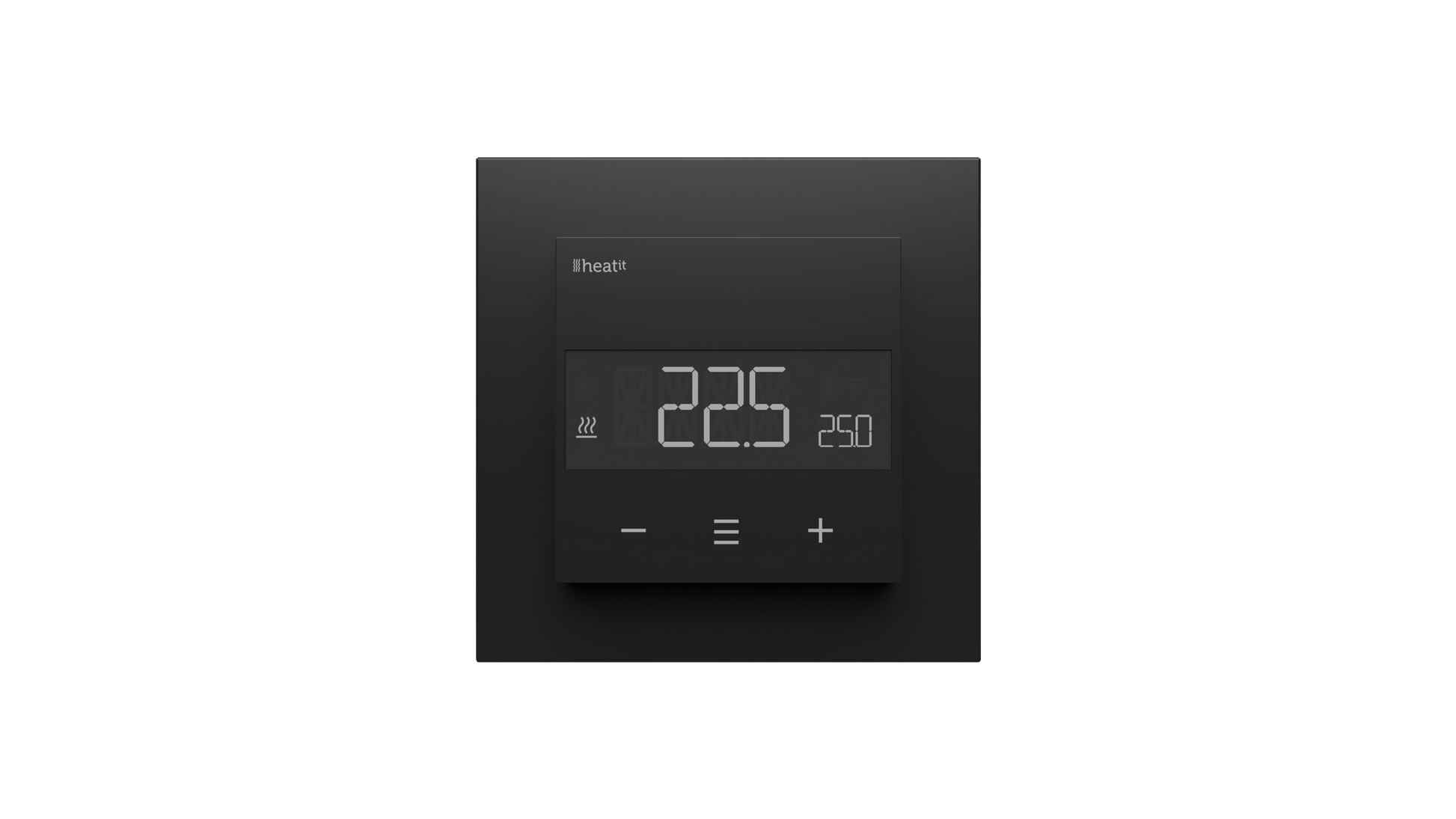

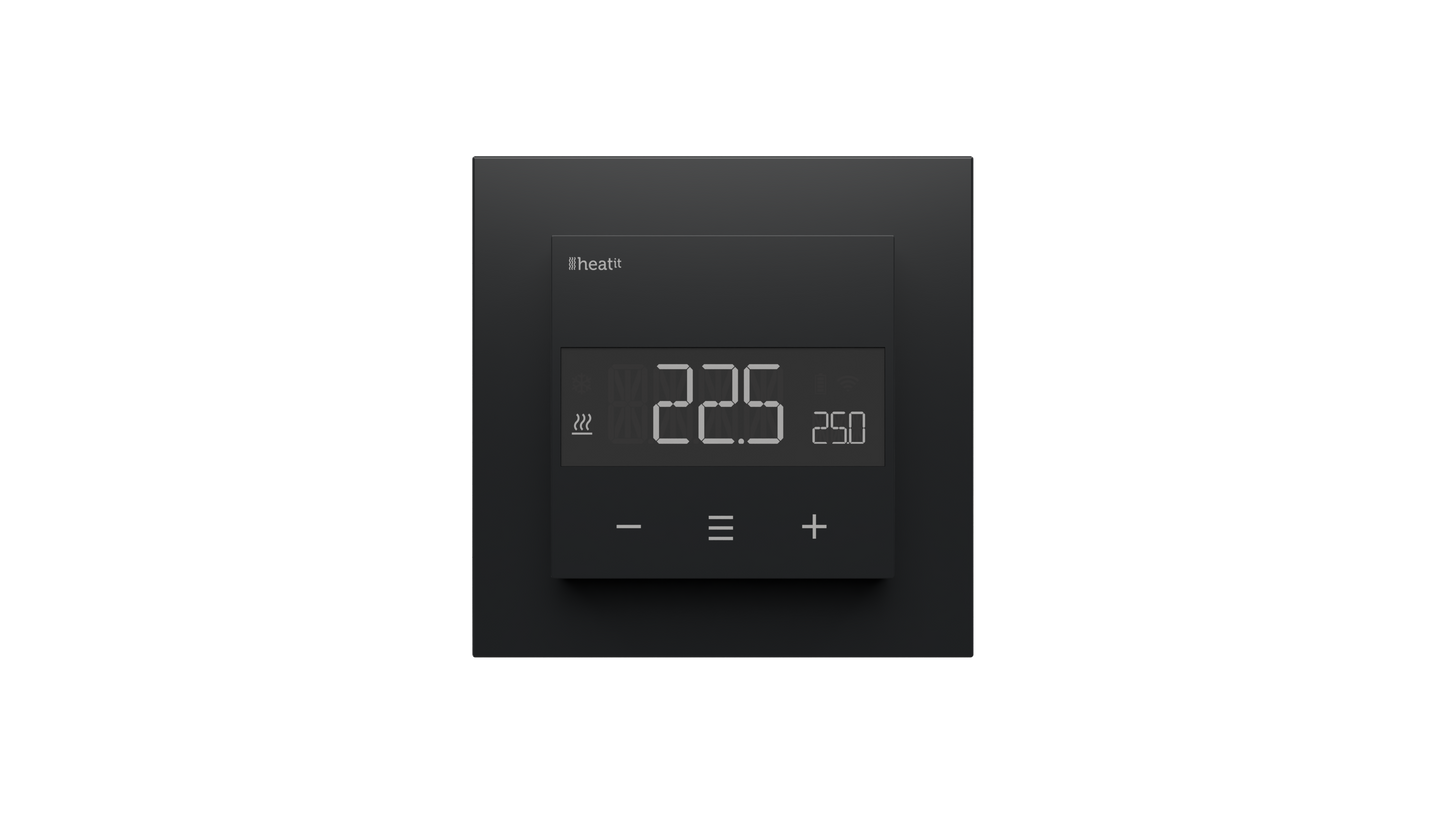

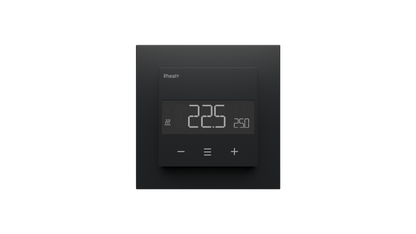

Safety/Convenience: Includes a Lock mode/Child lock, Open window detection, and an adjustable LED display.
-
SmartStart: Supports SmartStart for easier Z-Wave inclusion.
-
OTA (Over-The-Air) Updates: Supports firmware updates over the Z-Wave network.
