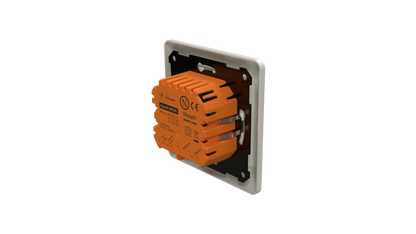

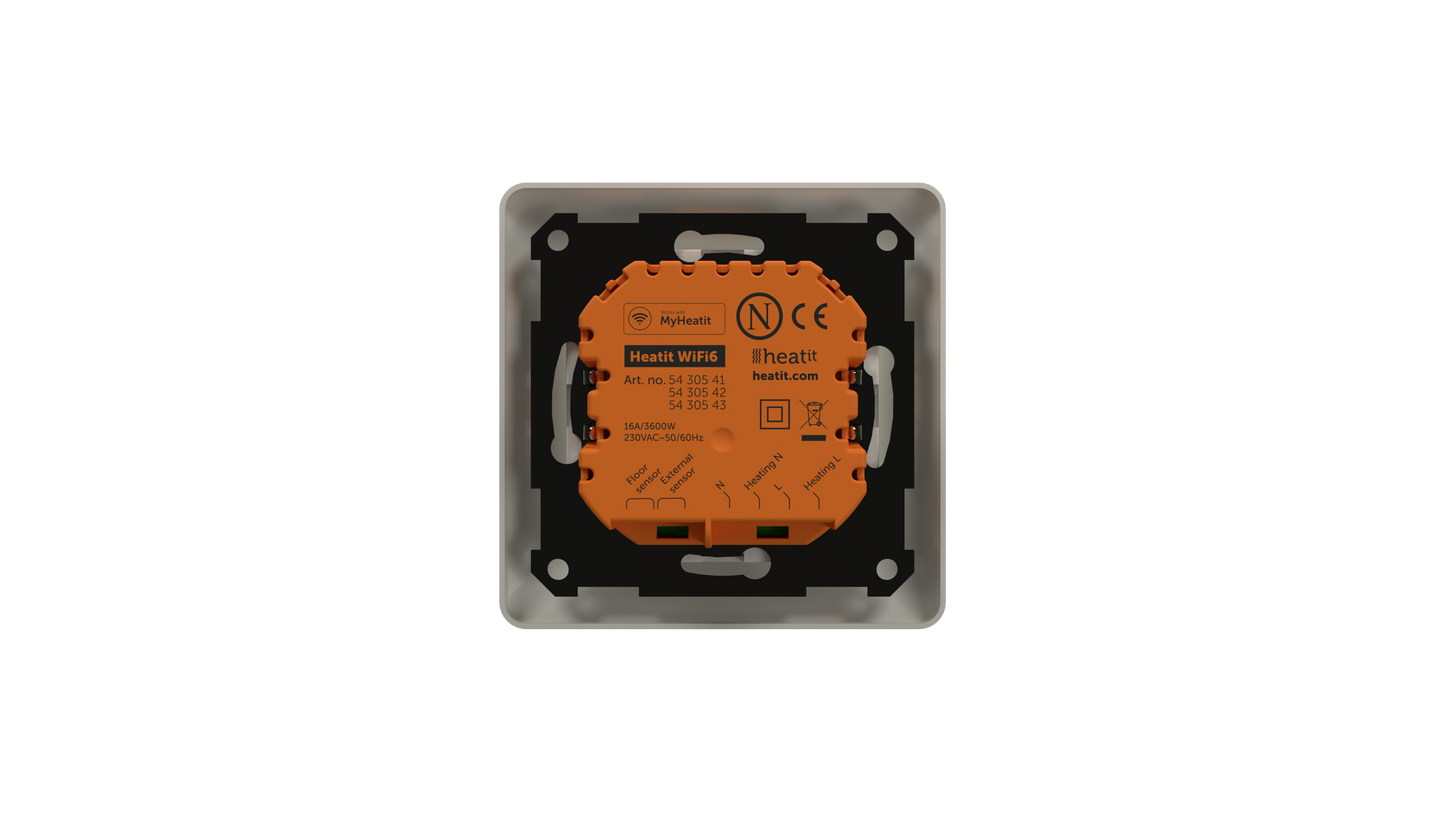

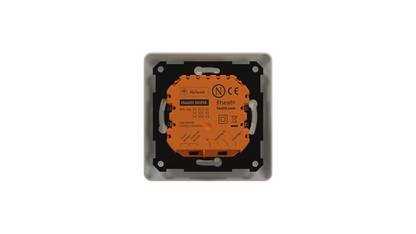

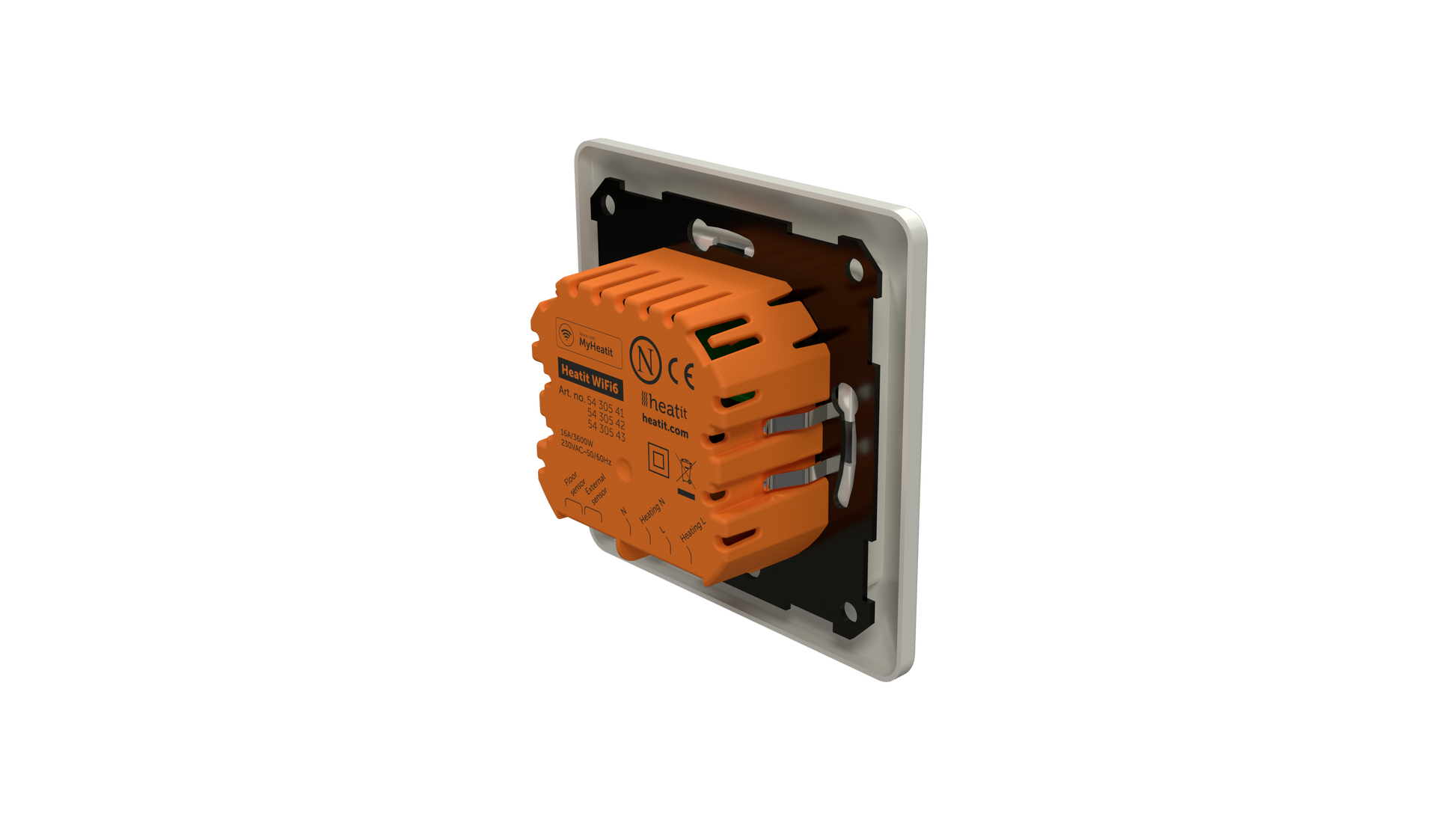

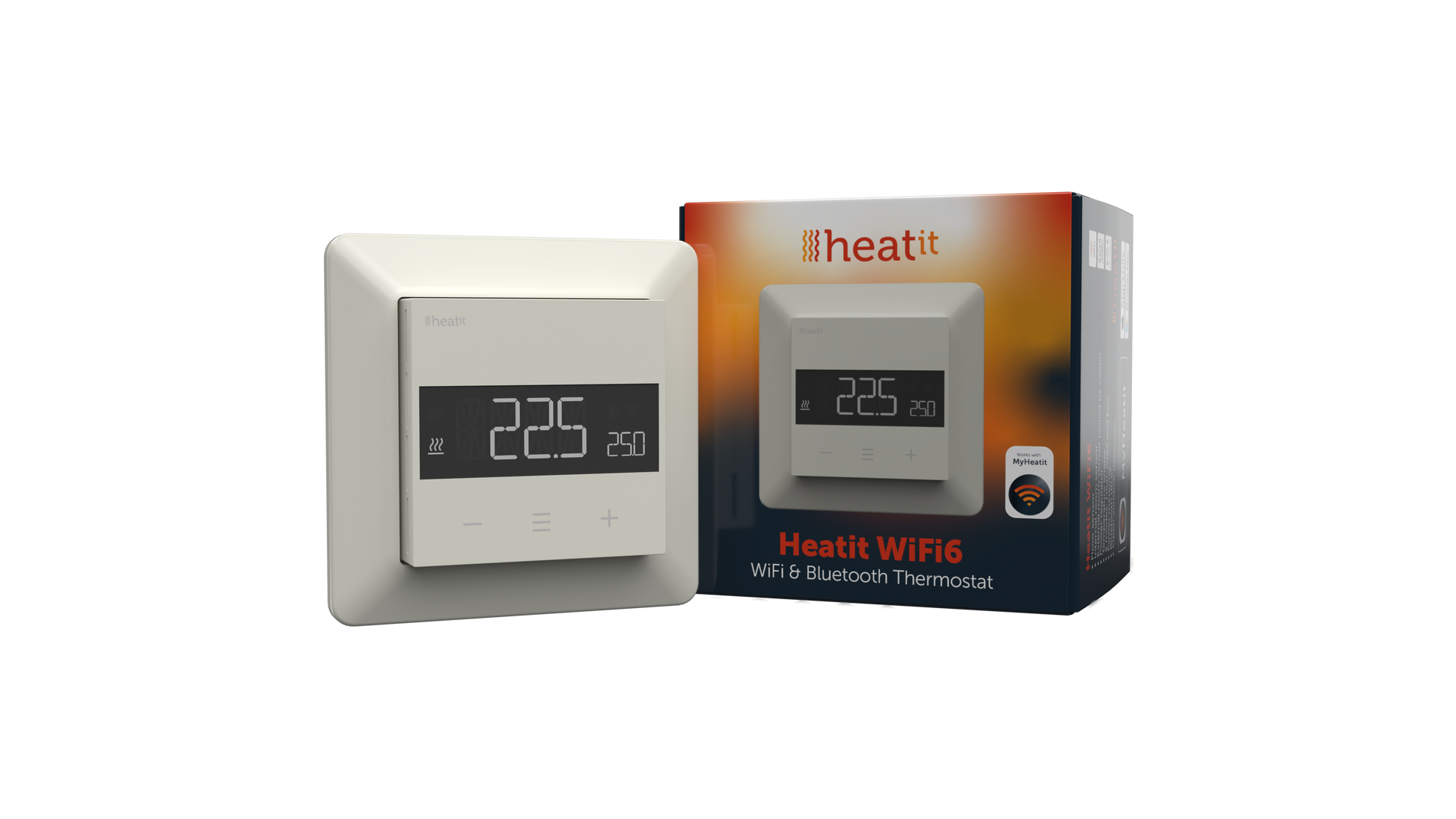

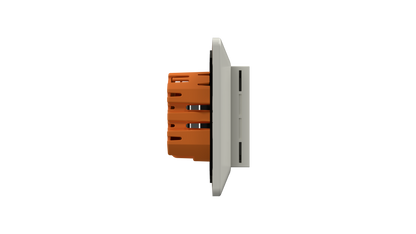

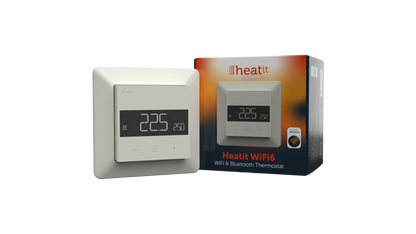

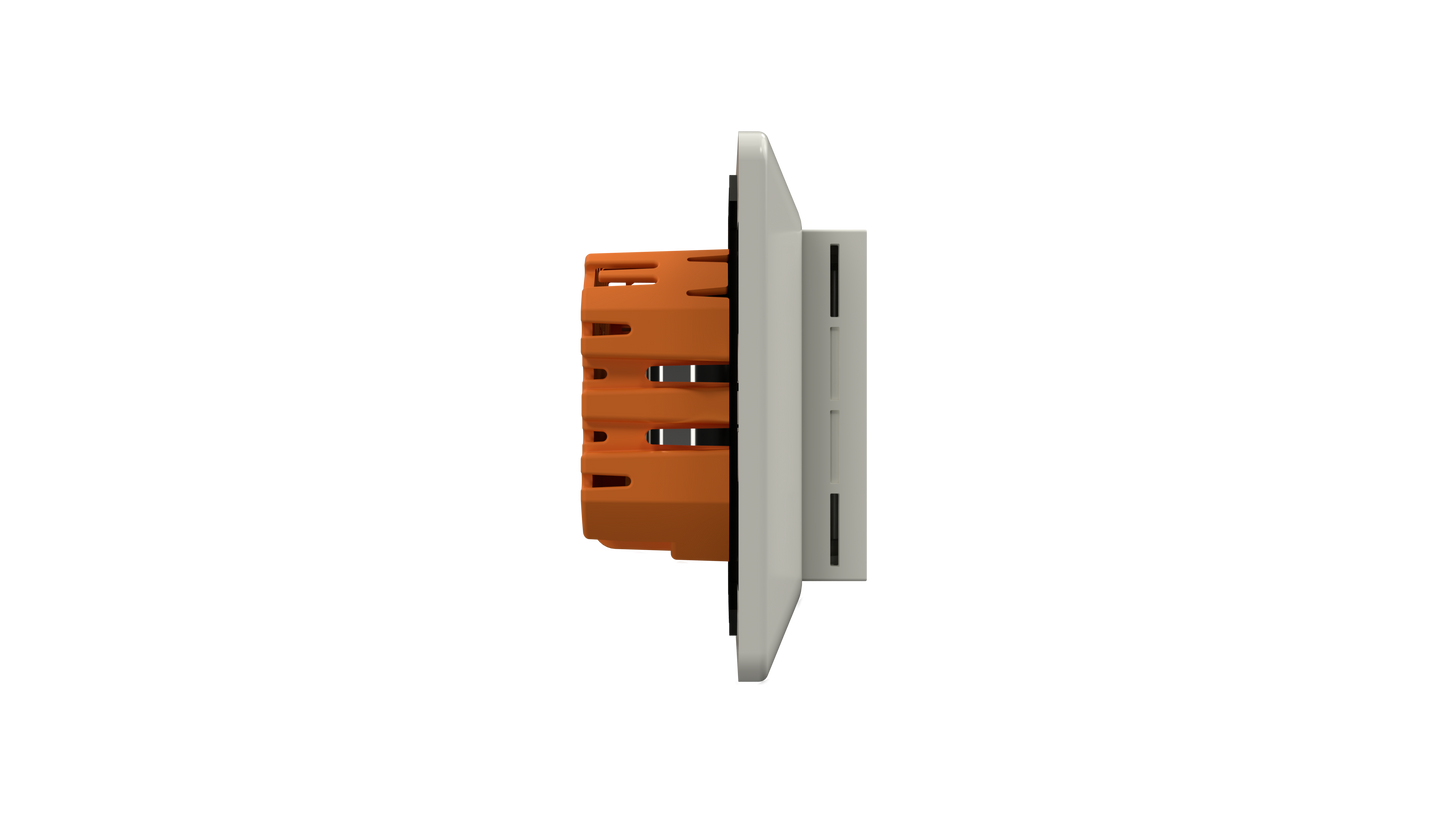

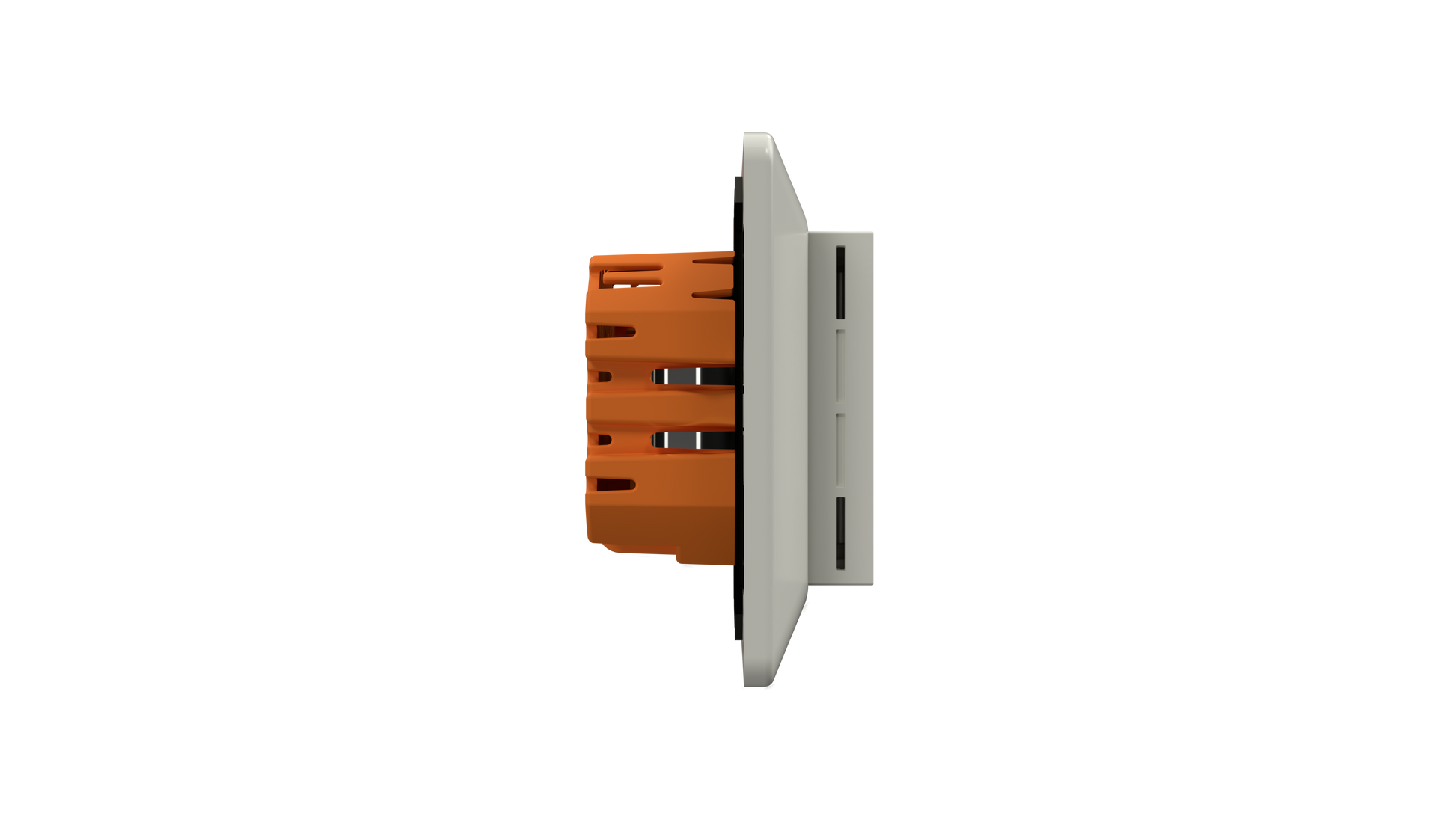

Heatit WiFi6 Thermostat (White RAL 9010)

The Heatit WiFi6 Thermostat (White RAL 9010) is a smart electronic thermostat designed for controlling both electric heating and water-based heating systems.

Here are its key features and specifications:

Functionalities

• Connectivity:

  • Wi-Fi (2.4 GHz) and Bluetooth (BLE) for setup and control.

  • Controlled via the "MyHeatit" App (for iOS and Android).

  • Supports a Local API for integration with local gateways/servers without needing a cloud connection.

  • Smart Home Ready: Supports Amazon Alexa and Google Home (support may be pending/in development).

• Modes: Offers three operating modes: Heat, Cool, and Eco.

• Sensors:

  • Built-in Internal Room Sensor.

  • Connects up to two External Temperature Sensors (wired), including a Floor Sensor and an external room sensor.

  • Multiple sensor modes (e.g., Room only, Floor only, Room and Floor limiter, External Sensor, etc.) are configurable.

• Energy and Efficiency:

  • Active Power Metering: Provides real-time information on power consumption.

  • ZeroX™ Technology: Ensures the relay switches at 0V, significantly extending the thermostat's lifespan.

  • Open Window Detection: Cuts off heating if a rapid drop in temperature is detected.

  • Weekly Schedule and customizable Profiles (Home, Away, Night, Holiday) via the app.

• Design & Installation:

  • Colour: White (RAL 9010).

  • Fits in standard European junction boxes.

  • Compatible with most System 55 frames (e.g., GIRA).

  • Features a sturdy metal frame for secure mounting.

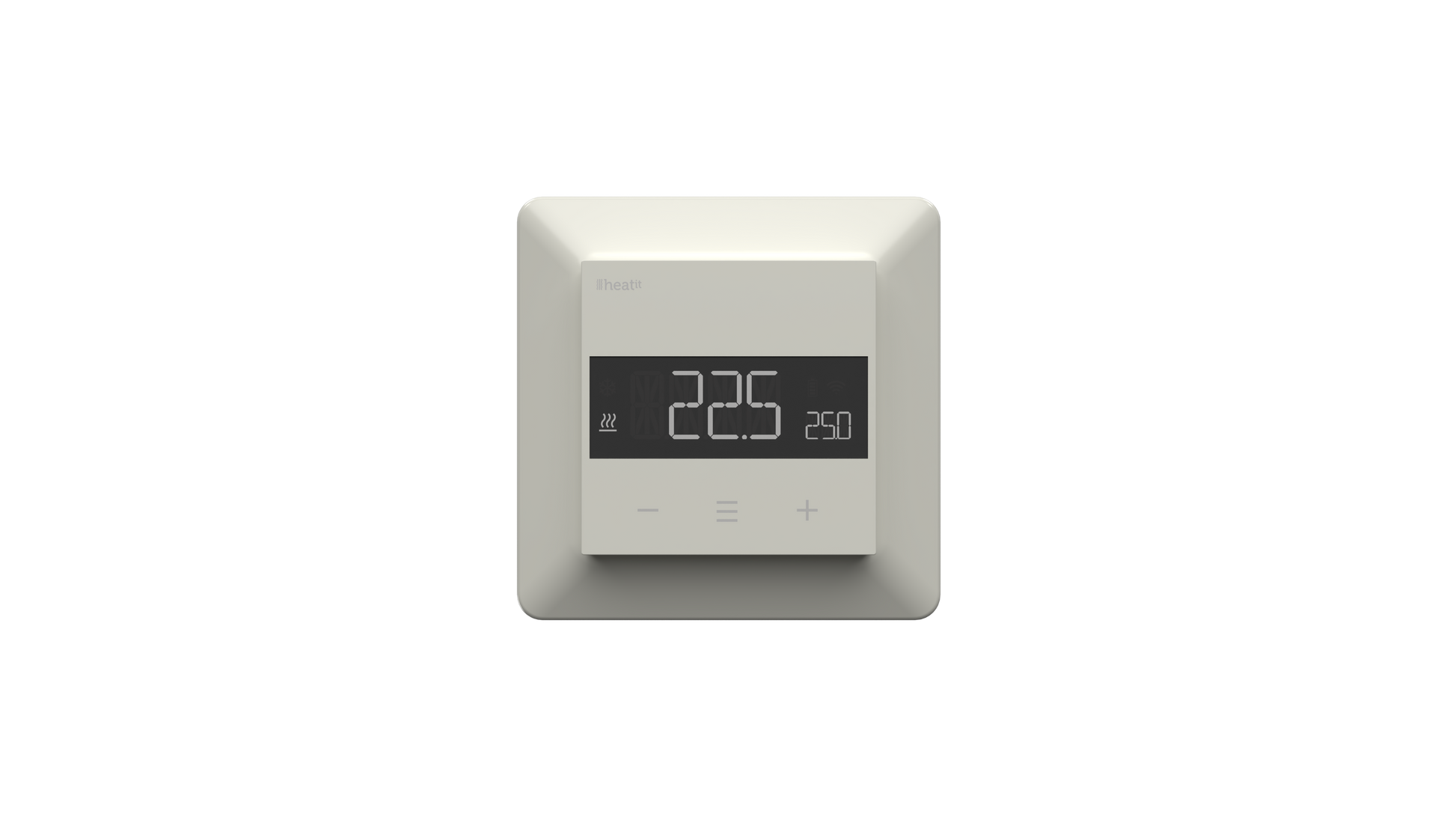

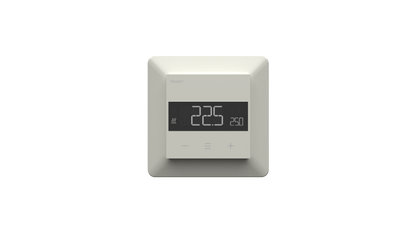

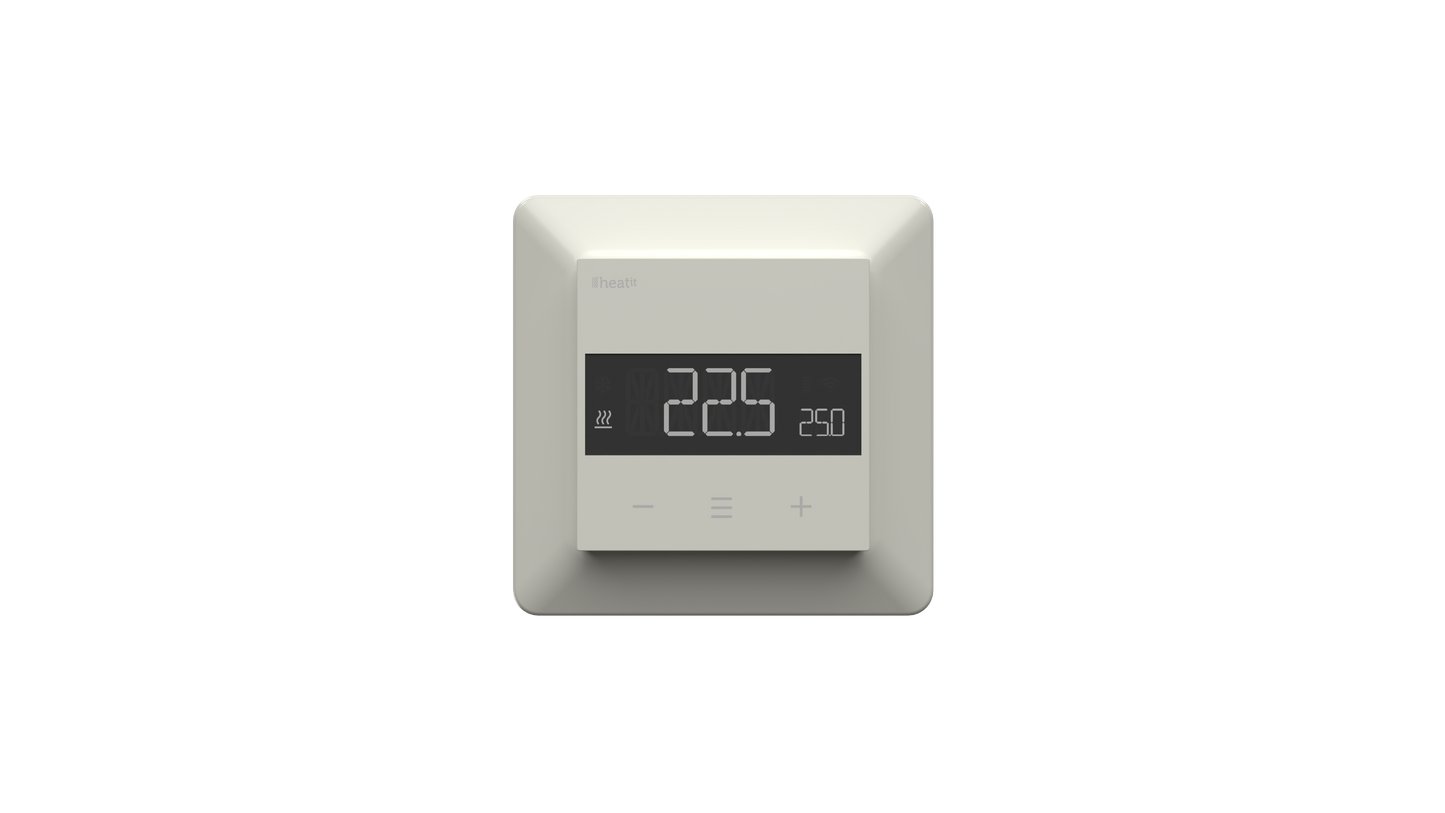

  • LCD display with adjustable brightness and user-friendly interface.

  • Includes a Child Lock/Lock Mode and Temperature Limiter.

Technical Specifications (General)

• Voltage: 230VAC 50Hz

• Max Load (Resistive): 3600W

• Max Current (Resistive): 16A (Contactor recommended for loads above 13A)

• Temperature Regulation Range: 5∘C to 40∘C

• Hysteresis: Adjustable from 0.3∘C to 3.0∘C (Default 0.5∘C)

• IP Code: IP21

• Compatible NTC-sensors: $6.8,10,12,15,22,33,47,100k\Omega$ @ 25∘C
