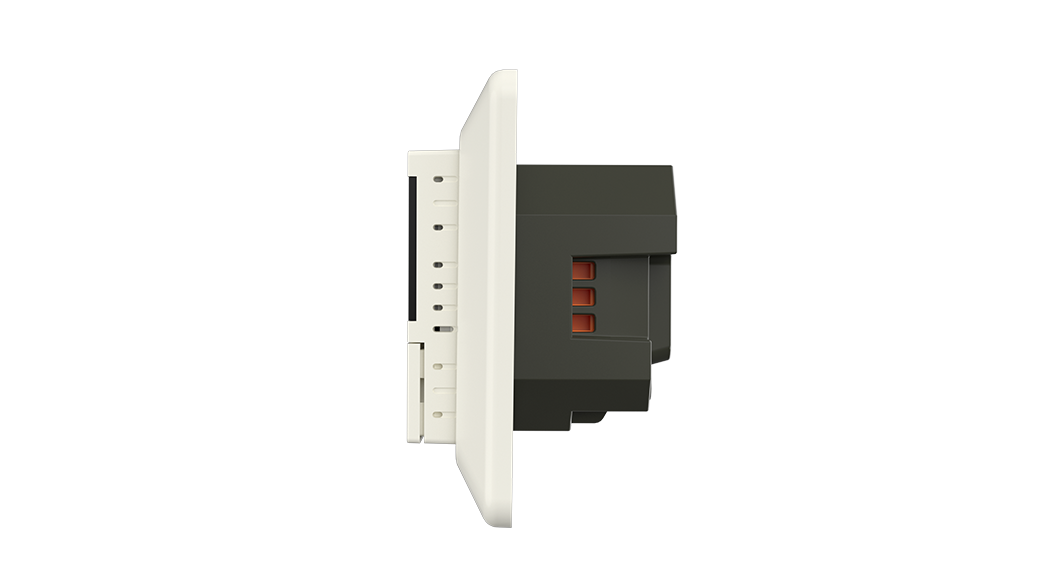

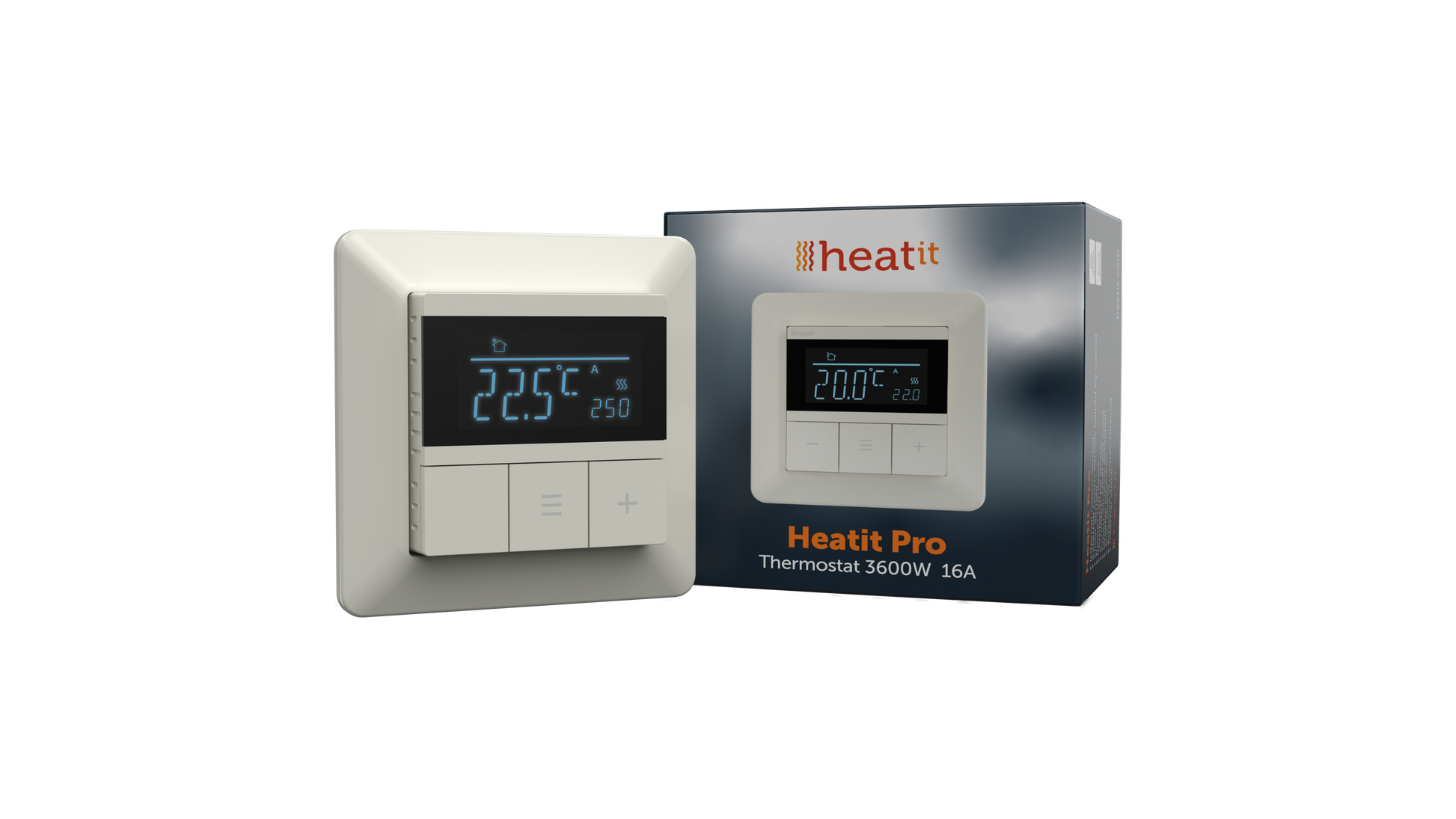

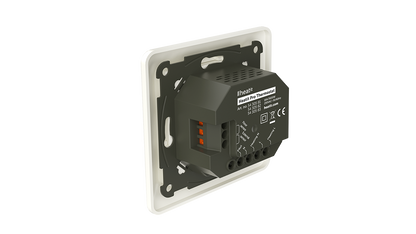

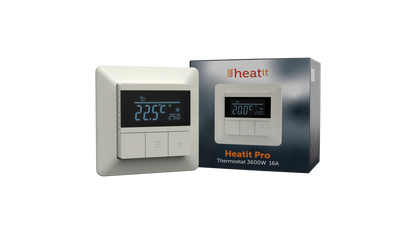

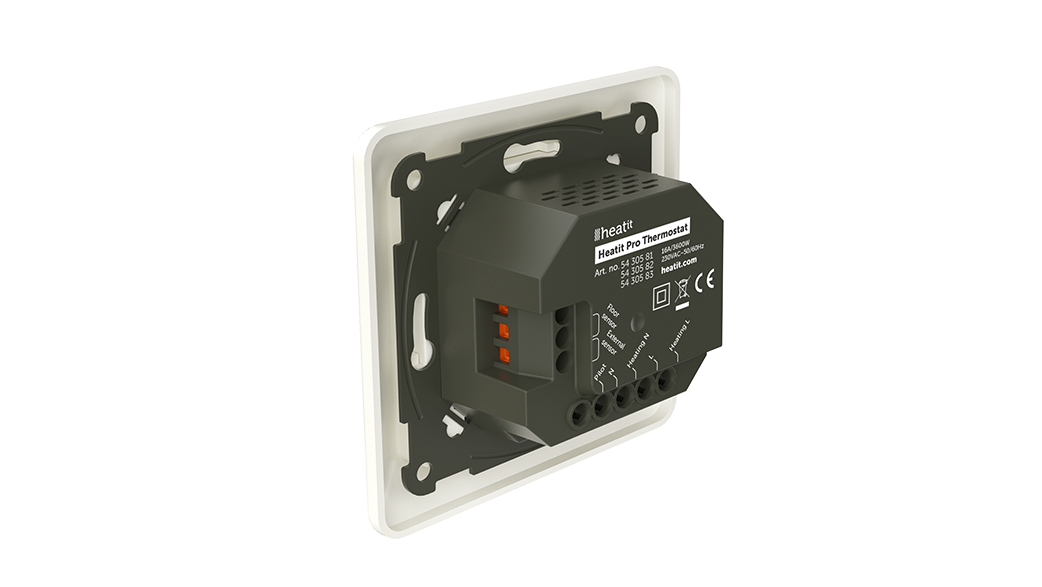

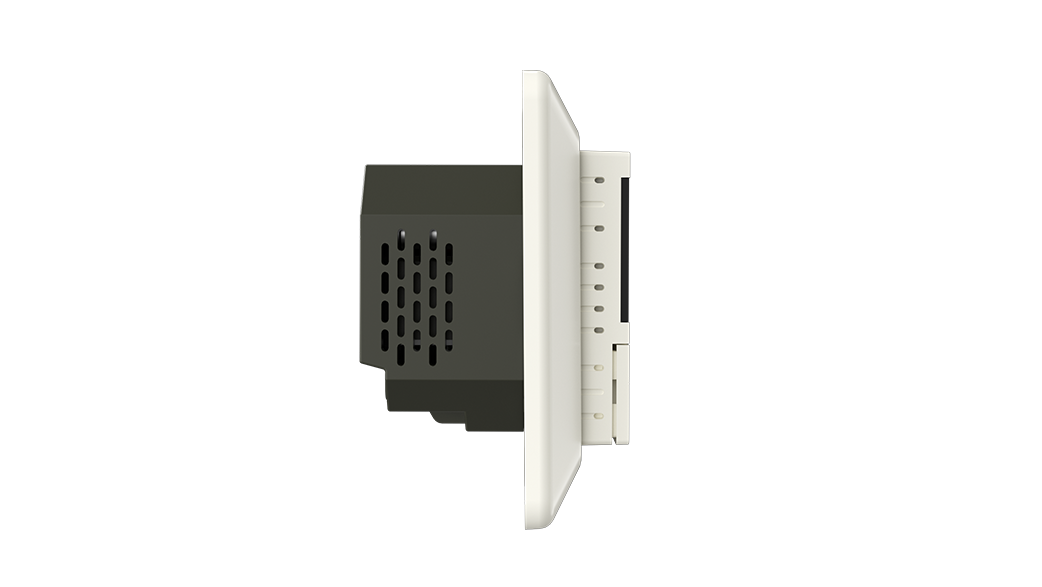

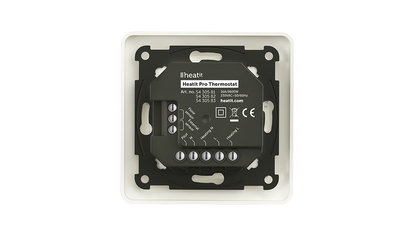

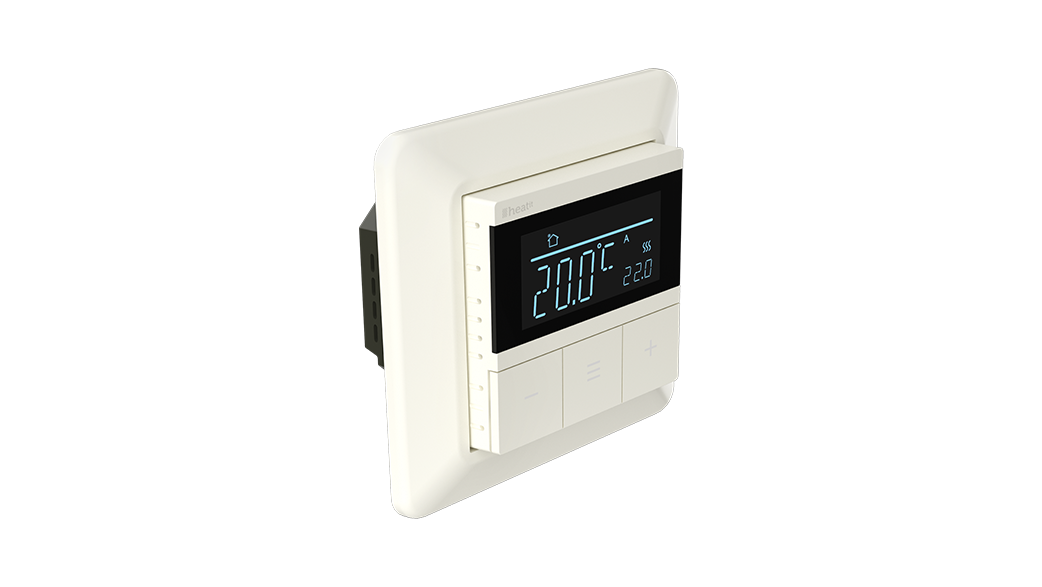

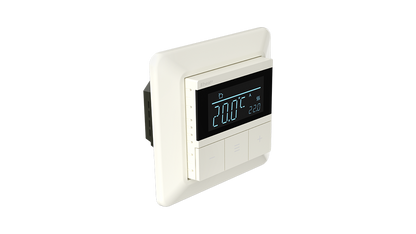

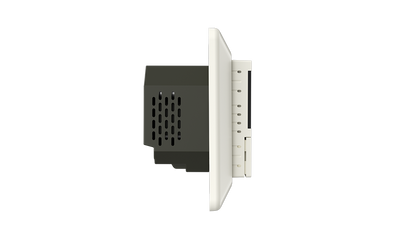

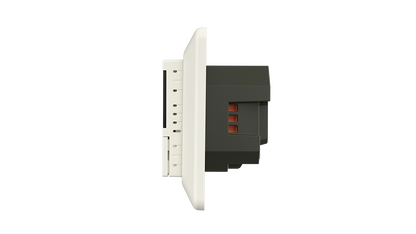

Heatit Pro Thermostat (White RAL 9010)

The Heatit Pro Thermostat (White RAL 9010) is an electronic thermostat designed for controlling electric heating, water-based heating, and cooling systems. It is a device that is typically controlled manually via its built-in display and buttons, without the direct Wi-Fi/App control found in the 'WiFi6' model.

Here are its key features and specifications:

Functionalities

• Control: Primarily controlled using the buttons on the front of the thermostat.

• Connectivity: It is a non-IP-based thermostat and does not have Wi-Fi or Bluetooth for remote app control.

• Modes: Offers 2 main modes: Heat and Cool.

• Sensors:

  • Built-in Internal Room Sensor.

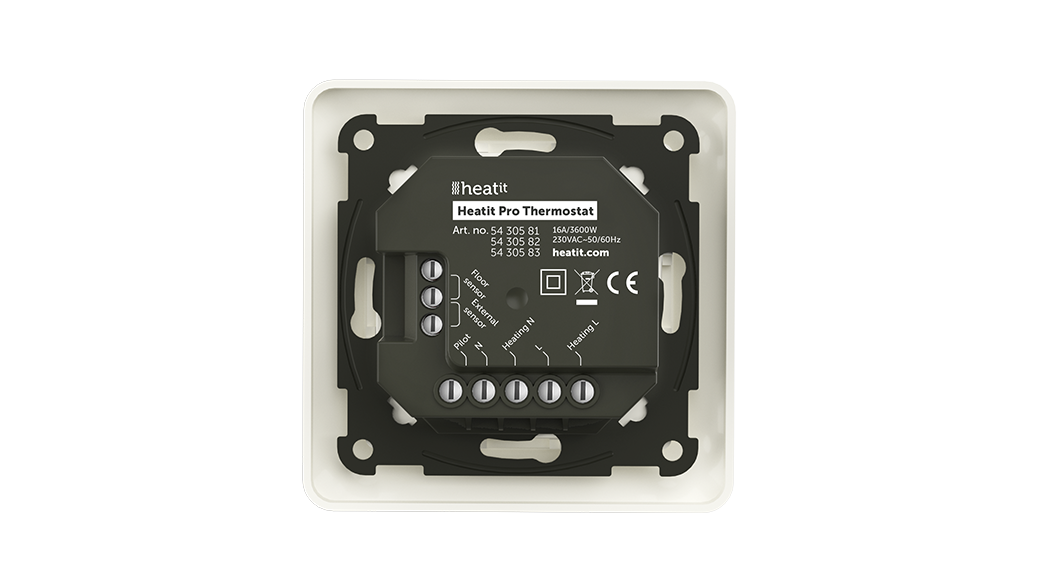

  • Can connect two additional external temperature sensors (wired), including a Floor Sensor and an external room sensor.

• Energy and Efficiency:

  • Active Power Metering: Allows the user to see real-time power consumption.

  • ZeroX™ Technology: Ensures the relay switches at 0V, significantly extending the thermostat's lifespan.

  • Weekly Schedule and Adaptive Function (for heating).

  • Open Window Detection.

  • Anti-Freeze mode.

• Design & Installation:

  • Colour: White (RAL 9010).

  • Fits in standard European junction boxes.

  • Compatible with most System 55 frames.

  • Features a sturdy metal frame for secure mounting.

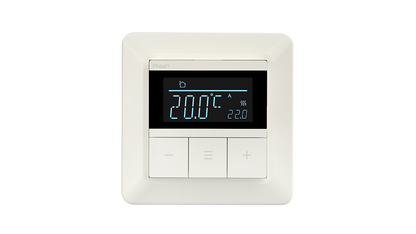

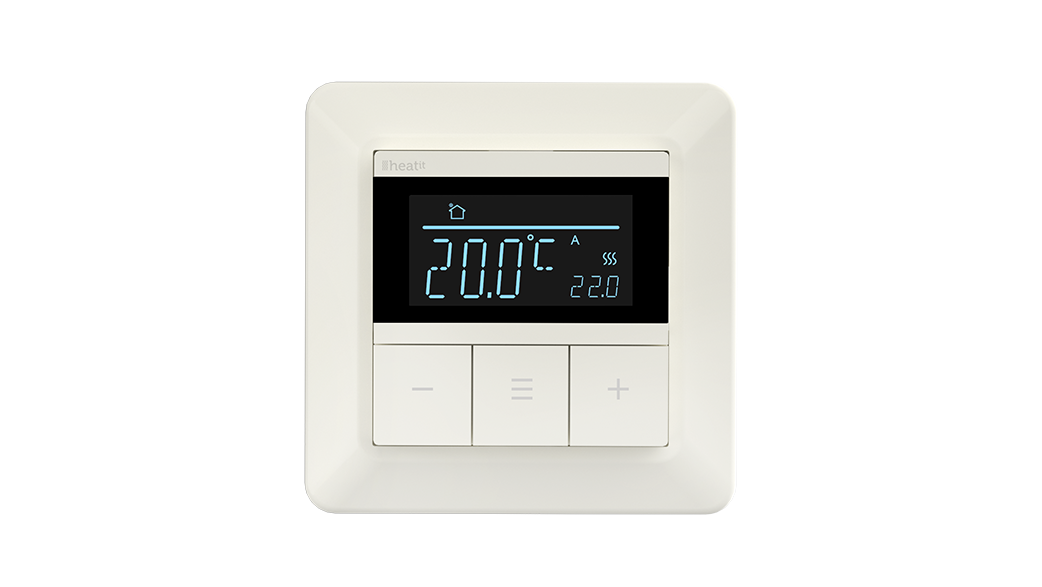

  • Easy-to-read LCD display with adjustable brightness.

  • Includes Child Lock/Lock Mode and Temperature Limiter.

  • Works with both Normally Open (NO) and Normally Closed (NC) actuators for water-based systems.

Technical Specifications (General)

• Voltage: 230VAC 50Hz

• Max Load (Resistive): 3600W

• Max Current (Resistive): 16A (Contactor recommended for loads above 13A)

• Temperature Regulation Range: 5∘C to 40∘C

• Hysteresis: Adjustable from 0.5∘C to 10∘C (Default 0.5∘C)

• IP Code: IP21

• Compatible NTC-sensors: $6.8,10,12,15,22,33,47,100k\Omega$ @ 25∘C
