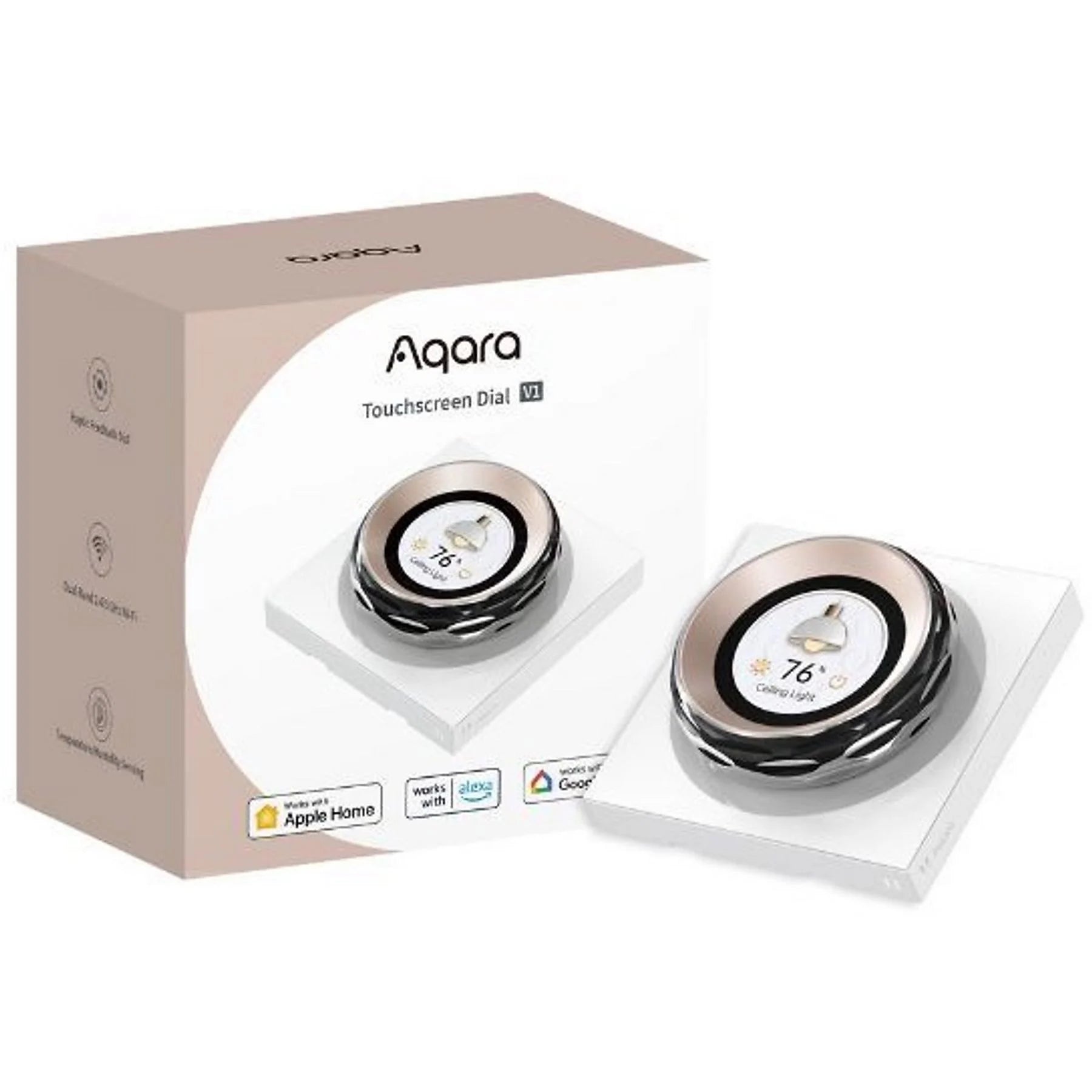

aqara Touchscreen Dial V1 EU

Aqara Touchscreen Dial V1 EU: The Intuitive Smart Home Navigator

The Aqara Touchscreen Dial V1 EU is an innovative wall-mounted controller that redefines the interaction between users and their smart home devices. Integrating an aesthetic design with powerful functionality, this device features a sophisticated 1.32-inch circular touchscreen paired with a tactile rotary dial. It is designed to act as an all-in-one control center, offering a satisfying and precise method for managing lighting, climate, and various scenes. The premium feel is enhanced by the skin-friendly matte AG glass and a CNC-precision metal dial, making it an elegant addition to any modern interior.

Functionalities: Precise Control and Smart Environmental Sensing

The Touchscreen Dial V1 EU offers a rich set of features that combine tangible control with smart automation and monitoring.

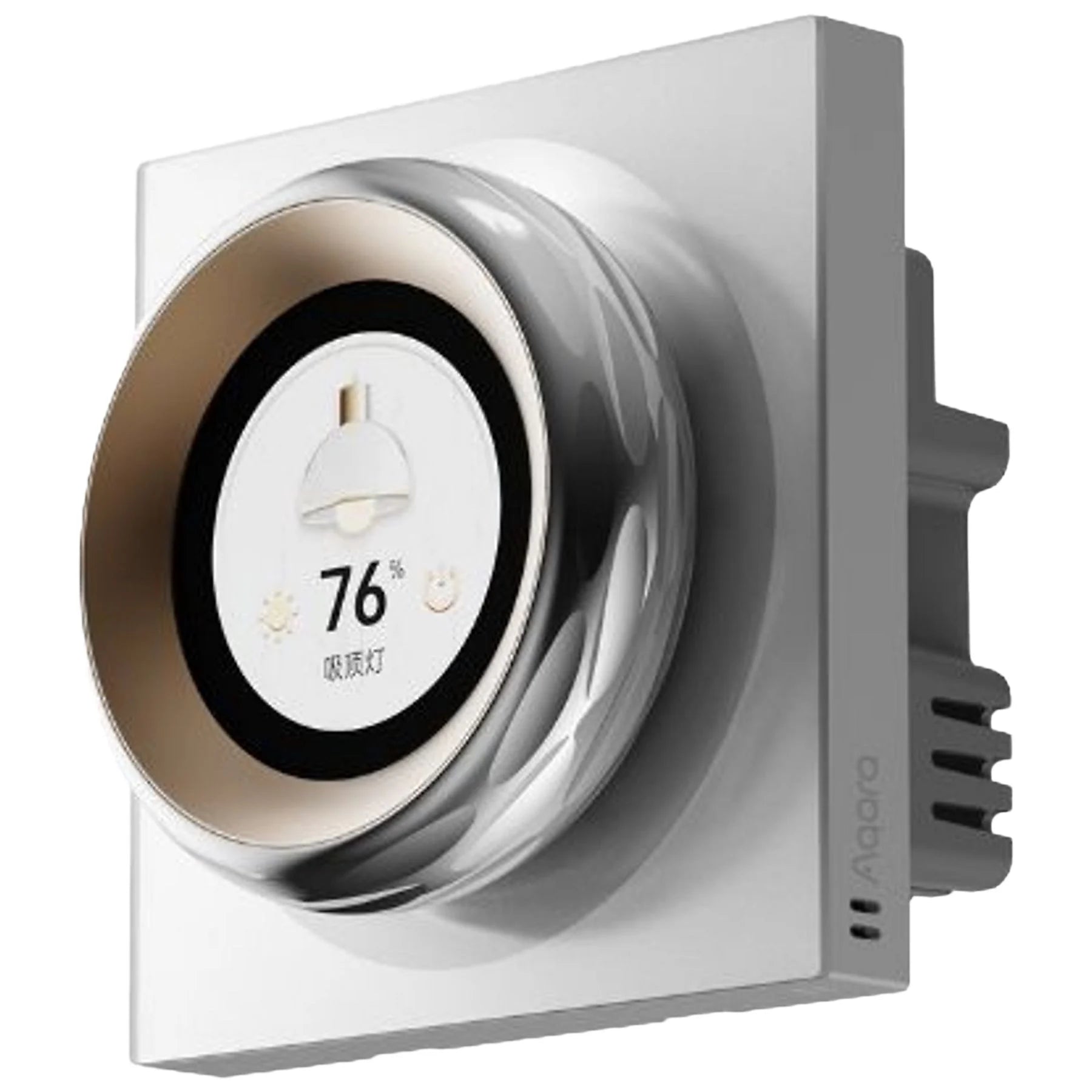

• Tactile Rotary Dial with Haptic Feedback: The core feature is the metal rotary dial, which offers a unique and satisfying user experience. It provides haptic vibration and sound feedback for precise adjustments, enabling users to fine-tune settings like light brightness, color temperature, or curtain openness from $1\%$ to $100\%$. The dial supports rotation, clicking, and touch gestures for versatile interaction.

• Multi-Device and Scene Management: This device is a highly versatile controller, featuring two wired relay switches for controlling electrical loads (like standard lights) and six wireless switches configurable on the touchscreen. This allows for centralized management of up to eight controls from a single wall point, including the launch of complex scenes ("Good Morning," "Away Mode") and direct control over multiple compatible Aqara devices on one screen.

• Integrated Environmental Monitoring: Built-in temperature and humidity sensors provide real-time indoor climate data directly on the screen. This information is crucial for informed control and serves as a powerful trigger for climate automations, such as automatically adjusting an Aqara Thermostat E1 or turning on an AC unit when certain temperature thresholds are reached.

• Personalized Touchscreen Dashboard: The 1.32-inch round display is fully customizable. Users can select from various themes and screen savers to display useful at-a-glance information, including the time, date, local weather, and current indoor environmental readings. This personalization ensures the interface is both functional and aesthetically pleasing.

• Proximity Activation and Energy Efficiency: A built-in presence sensor allows the display to automatically wake up as someone approaches, providing a seamless and intuitive user experience. This feature can be configured to reduce unnecessary screen brightness, contributing to energy efficiency and a reduction in light pollution.

• Broad Smart Home Connectivity: Operating over dual-band Wi-Fi ($2.4\text{GHz}$ and $5\text{GHz}$), the switch ensures stable connectivity. It integrates seamlessly with major ecosystems, including Apple HomeKit, Google Home, Amazon Alexa, and Home Assistant, via its Wi-Fi connection and cloud integrations. It is also compatible with Zigbee devices when paired with an Aqara Hub.

Technical Specifications
