Aeotec

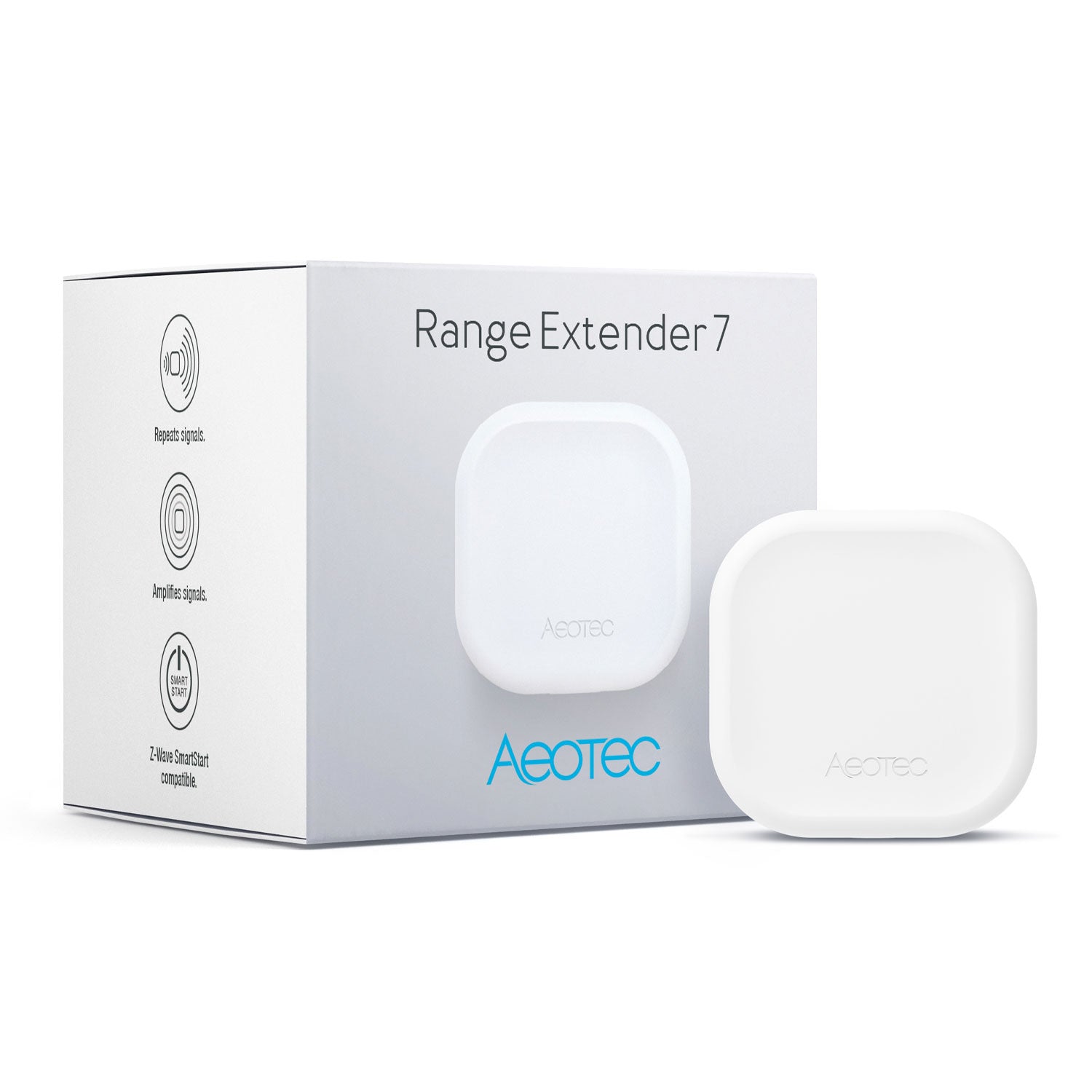

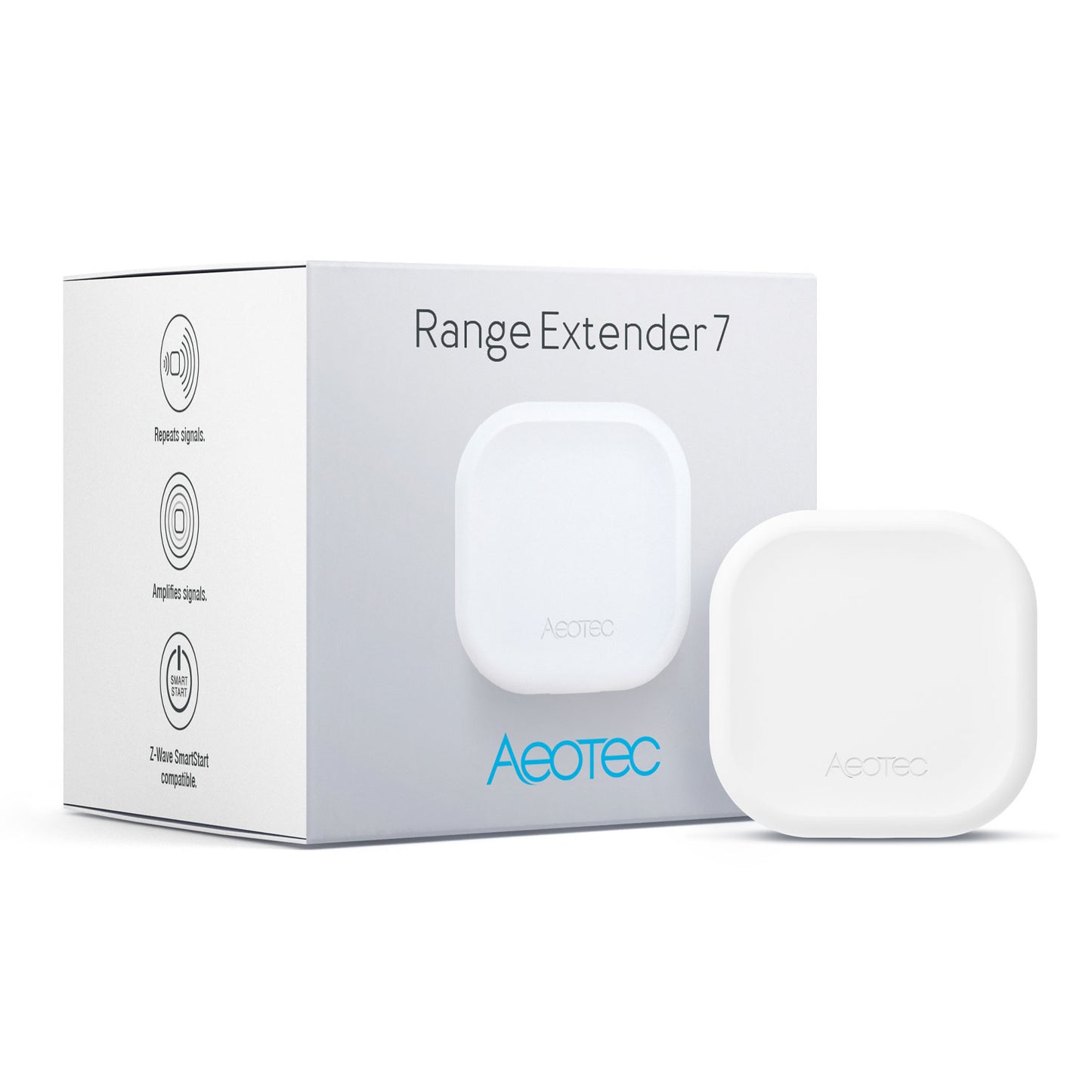

Aeotec Range Extender 7

Name: Aeotec Range Extender 7
Brand: Aeotec
Price: 44.90 EUR
Availability: InStock

€44,90

Sale Sold out

Taxes included. Shipping calculated at checkout.

The Aeotec Range Extender 7 is a dedicated plug-in $Z-Wave$ signal repeater ( $router$ ), built using the latest $Gen7$ technology ( $Z-Wave Plus V2$ and $700$ series chip). Its purpose is to capture, amplify, and repeat weak $Z-Wave$ and $Z-Wave Plus$ signals, effectively extending the range and improving the stability of a $Z-Wave$ smart home network, eliminating wireless dead spots. It supports modern features like $SmartStart$ for easy pairing and $S2$ security for enhanced encryption.

Features

Dedicated $Z-Wave$ Repeater/Router: Designed solely to receive, amplify, and re-broadcast $Z-Wave$ signals, creating additional routing nodes in the mesh network.
Gen7 Technology: Utilizes the $Z-Wave 700$ series chip, which offers improvements over older generations, including increased range, lower power consumption, and faster performance.
Universal Compatibility: Compatible with all generations of $Z-Wave$ devices, including older $Z-Wave$ ( $300$ series) and $Z-Wave Plus$ ( $500$ series) devices, as well as the latest $Z-Wave Plus V2$ ( $700$ series) devices.
Advanced Security ( $S2$ ): Features $S2$ security certification, providing enhanced encryption and protection against hacking.
Easy Pairing ( $SmartStart$ ): Supports $SmartStart$ for simplified inclusion into a $Z-Wave$ network by scanning a $QR$ code.
Operating Range: Capable of extending the signal significantly, up to $30$ meters ( $98$ feet) indoors and up to $150$ meters ( $492$ feet) outdoors (line of sight).
Compact Design: Small form factor that plugs into a standard wall outlet without obstructing neighboring outlets.
LED Status Control: The device has an $LED$ to indicate network status, which can be turned $ON$ or $OFF$ by double-tapping the action button.

Technical Specifications (US Model $ZW189-A01$ )

Feature	Specification
Model Number	$ZW189-A01$ ( $US$ Plug Type $A$ )
Wireless Protocol	$Z-Wave Plus V2$ ( $Gen7$ )
Z-Wave Frequency	$908.42 MHz$ ( $US$ region)
Function	Repeater / Router (Always $ON$ )
AC Input	$120V, 60Hz$
Power Consumption	$0.6W$
Security	$S2$ Authenticated and Unauthenticated
Pairing	$SmartStart$ enabled
Operating Distance (Indoor)	Up to $30$ meters ( $98$ feet)
Operating Distance (Outdoor)	Up to $150$ meters ( $492$ feet)
Product Dimensions ( $W \times H \times D$ )	$53.2 \times 46 \times 40 mm$ ( $2.09 \times 1.81 \times 1.57 in$ )
Waterproof and Dust Rating	$IP20$
