Aeotec

Aeotec Home Energy Meter 8

Name: Aeotec Home Energy Meter 8
Brand: Aeotec
Price: 88.50 EUR
Availability: InStock

€88,50

Sale Sold out

Taxes included. Shipping calculated at checkout.

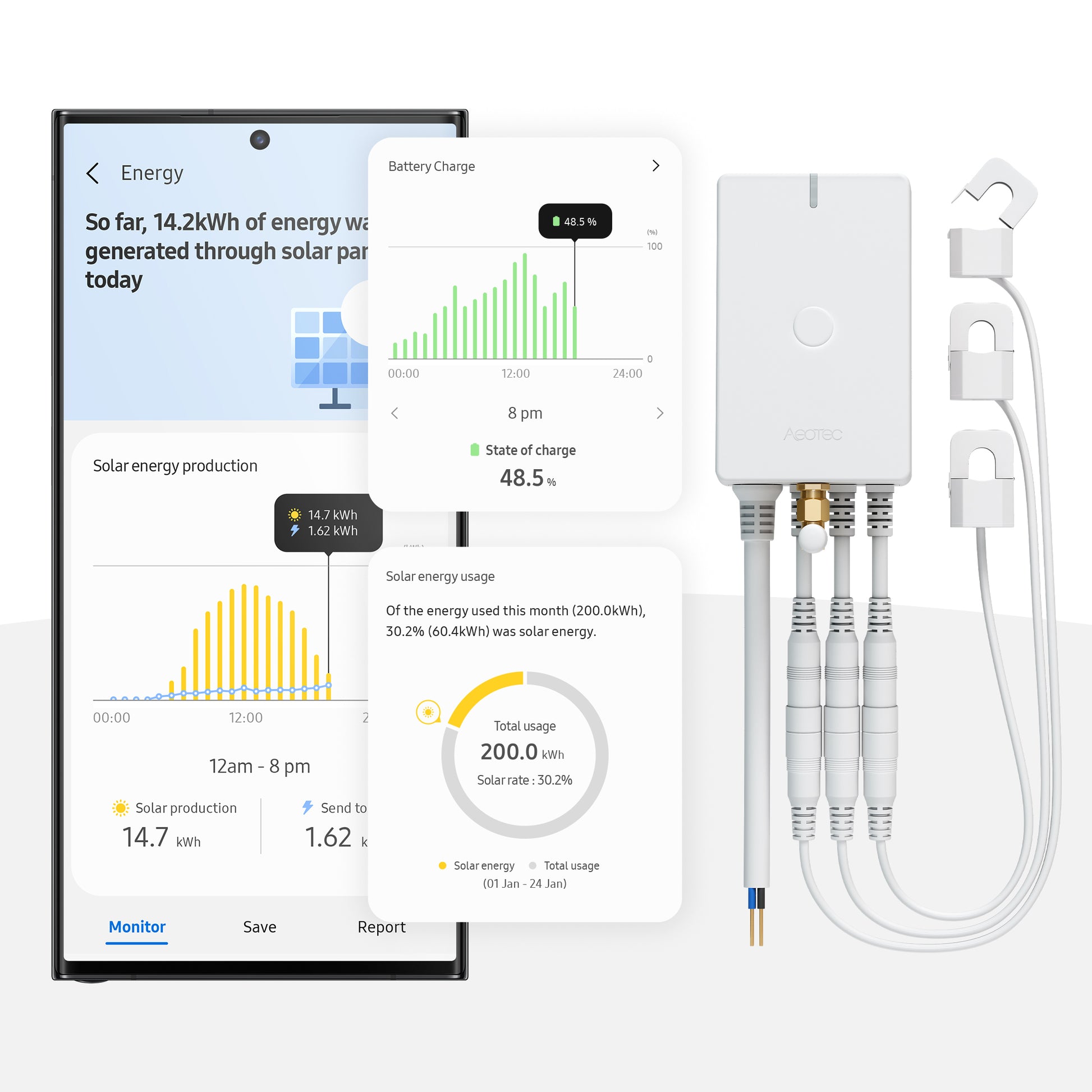

The Aeotec Home Energy Meter 8 (HEM 8) is a state-of-the-art whole-home power meter designed to provide real-time, highly accurate electricity monitoring for residential properties. Utilizing the latest Z-Wave $800$ Series chip and Long Range technology, this device clamps onto your main electrical wiring to precisely measure and report consumption, production (e.g., from solar panels), voltage, and other key electrical metrics. It is an essential tool for maximizing energy efficiency, minimizing costs, and achieving energy sustainability in any modern smart home.

Features

Whole-Home Energy Monitoring: Accurately measures energy consumption and production across your entire home's electrical service. It can connect to $1$ -phase, $2$ -phase, and $3$ -phase electrical systems (via different variants).
Z-Wave $800$ Series with Long Range: Incorporates the latest Z-Wave $800$ Series chip, offering enhanced security, superior energy efficiency, and revolutionary Z-Wave Long Range capability, extending wireless communication distance up to four times that of standard Z-Wave.
Solar Energy Monitoring: Capable of measuring both power consumption from the grid and power production to the grid (e.g., solar or wind power), providing a complete view of your home's energy balance.
High Accuracy Measurement: Delivers highly accurate energy data (over $\text{99%}$ accuracy when current is greater than $0.05 A$ ), including real-time $Wattage (W)$ , $Voltage (V)$ , $Current (A)$ , $Power Factor$ , and more.
Real-Time Insights: Provides instantaneous and historical energy data to your Z-Wave controller, allowing for immediate consumption adjustments and better energy-saving automation.
Tamper and Weather Resistant: Features an $IP 44$ rating, making it suitable for vertical installation in challenging environments, such as outdoor breaker boxes, while S2 security ensures data privacy.
Z-Wave Repeater: Acts as a repeater within your Z-Wave mesh network, strengthening and extending the wireless signal range for other Z-Wave devices.

Technical Specifications

Feature	Specification
Wireless Protocol	Z-Wave Plus ( $Gen 8$ ) with S2 Security and SmartStart
Z-Wave Technology	$800$ Series Chipset (Supports Z-Wave Long Range)
Power Method	Wire In (Mains Powered)
Supported Systems	$1$ -Phase, $2$ -Phase, $3$ -Phase with Neutral (Variant dependent)
Current Measurement Range	$0 A \sim 200 A$ (Max $200 A$ per clamp, variant dependent)
Voltage Measurement Range	$80 V_{\sim} \sim 400 V_{\sim}$ (Variant dependent)
Measurement Accuracy	$> 99%$ ( $if current > 0.05 A$ )
Reported Metrics	$kWh$ , $W$ , $V$ , $A$ , $kVAh$ , $kVarh$ , $Power Factor$
Operating Temperature	$- 1 5^{\circ} C \sim 4 0^{\circ} C$
IP Rating	$IP 44$ (Weatherized)
Dimensions (Main Unit)	$\approx 85.5 \times 54.3 \times 38 mm$ ( $Length \times Width \times Thickness$ )
